Vexve AMV3
Characteristics
| Function: | Can be used as 3-way mixing- or diverting valve in heating and cooling systems |
| Turning direction: | Can be changed without tools, even when pressurized |
| Connections: | Female thread DN 15, 20, 25 and 32 / male thread DN 20, 25, 32 and 40 / CU22mm and CU28mm |
| Motorisation: | Standard four-point attachment |
| Suitable actuators: | For example Belimo, Ouman, Seltron, Evenes, Automix, Vexve, ESBE |
| Maintenance: | Maintenance-free – O-rings, stem and cover replaceable |
Properties
| Body: | DZR-brass |
| Closing element: | DZR-brass |
| Cover: | Forton |
| Handle: | POM |
| O-rings: | EPDM |
| Medium: | water, glycol |
| Threads: | ISO 228/1 |
| Max operating pressure: | 10 bar |
| Max closing pressure: | 4 bar |
| Operating temperature: | −10 °C – +120 °C |
| Torque: | < 3 Nm |
| Turning angle: | 90-degrees |
| Tightness rate | < 0,1 %, 2 bar/ 90 °C |

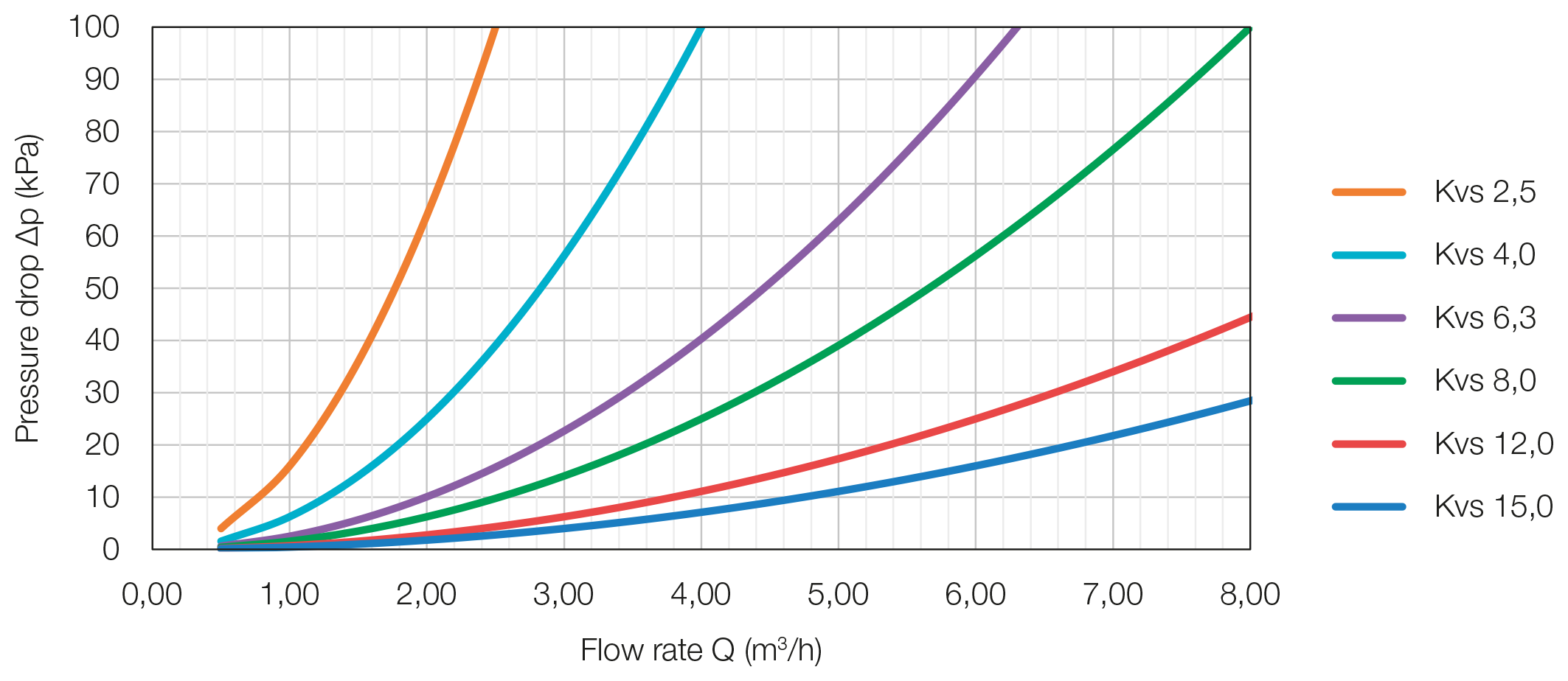

Valve selection chart
Female thread
| Item | Product number | HPAC code | RSK code | EAN | DN | Kv | A | B mm | C mm | D mm | E mm | F mm | kg |
| Vexve AMV 3101 | 153 0000 | 4023176 | 4905543 | 64158 4023176 9 | 15 | 0,6 | Rp1/2" | 72 | 36 | 62 | 17 | 60 | 0,5 |
| Vexve AMV 3102 | 153 0005 | 4023177 | 4905544 | 64158 4023177 6 | 15 | 1,0 | Rp1/2" | 72 | 36 | 62 | 17 | 60 | 0,5 |
| Vexve AMV 3103 | 153 0010 | 4023178 | 4905545 | 64158 4023178 3 | 15 | 1,6 | Rp1/2" | 72 | 36 | 62 | 17 | 60 | 0,5 |
| Vexve AMV 3104 | 153 0015 | 4023179 | 4905546 | 64158 4023179 0 | 15 | 2,5 | Rp1/2" | 72 | 36 | 62 | 17 | 60 | 0,5 |
| Vexve AMV 3111 | 153 0020 | 4023180 | 4905547 | 64158 4023180 6 | 20 | 4,0 | Rp3/4" | 72 | 36 | 62 | 18 | 60 | 0,5 |
| Vexve AMV 3112 | 153 0025 | 4023181 | 4905548 | 64158 4023181 3 | 20 | 6,3 | Rp3/4" | 72 | 36 | 62 | 18 | 60 | 0,5 |
| Vexve AMV 3121 | 153 0030 | 4023182 | 4905549 | 64158 4023182 0 | 25 | 8,0 | Rp1” | 82 | 41 | 67 | 22 | 64 | 0,9 |
| Vexve AMV 3122 | 153 0035 | 4023183 | 4905550 | 64158 4023183 7 | 25 | 12,0 | Rp1" | 82 | 41 | 67 | 22 | 64 | 0,9 |
| Vexve AMV 3131 | 153 0040 | 4023184 | 4905551 | 64158 4023184 4 | 32 | 15,0 | Rp1 1/4" | 94 | 47 | 73 | 25 | 64 | 1,0 |
Male thread
| Item | Product number | HPAC code | RSK code | EAN | DN | Kv | A | B mm | C mm | D mm | E mm | F mm | kg |
| Vexve AMV 3204 | 153 0045 | 4023185 | 4905552 | 6415840231851 | 20 | 2,5 | G3/4" | 72 | 36 | 62 | 17 | 60 | 0,5 |
| Vexve AMV 3202 | 153 0046 | 20 | 6,3 | G3/4" | 72 | 36 | 62 | 17 | 60 | 0,5 | |||
| Vexve AMV 3211 | 153 0050 | 4023186 | 4905553 | 6415840231868 | 25 | 4 | G1" | 72 | 36 | 62 | 18 | 60 | 0,5 |
| Vexve AMV 3212 | 153 0055 | 4023187 | 4905554 | 6415840231875 | 25 | 6,3 | G1” | 72 | 36 | 62 | 18 | 60 | 0,5 |
| Vexve AMV 3221 | 153 0060 | 4023188 | 4905555 | 6415840231882 | 32 | 8 | G1 1/4" | 82 | 41 | 67 | 22 | 64 | 0,9 |
| Vexve AMV 3222 | 153 0065 | 4023189 | 4905556 | 6415840231899 | 32 | 12 | G1 1/4" | 82 | 41 | 67 | 22 | 64 | 0,9 |
| Vexve AMV 3231 | 154 0070 | 4023190 | 4905557 | 6415840231905 | 40 | 15 | G1 1/2" | 94 | 47 | 73 | 25 | 64 | 1,0 |
CU
| Item | Product number | HPAC code | RSK code | EAN | DN | Kv | A | B mm | C mm | D mm | E mm | F mm | kg |
| Vexve AMV 3304 | 153 0048 | 4023015 | 6415840230151 | 20 | 2,5 | 22mm | 72 | 36 | 62 | 17 | 60 | 0,6 | |
| Vexve AMV 3326 | 153 0049 | 20 | 6,3 | 22mm | 72 | 36 | 62 | 17 | 60 | 0,6 | |||
| Vexve AMV 3312 | 153 0058 | 4023016 | 6415840230168 | 25 | 6,3 | 28mm | 72 | 36 | 62 | 18 | 60 | 0,8 |
