Vexve stainless steel ball valves

Available in sizes from DN 10 to DN 250

Stainless steel ball valves

DN 10–250

Download 3D pictures

from MagiCloud

Downloads

From the download center, you can find our company and product certificates, operation manuals, our general brochures and company-related media material in addition to tender specifications.

Valve finder

Find the right valve solution for you by using our valve finder

Stainless steel ball valve features

Fully welded structure of high quality materials

  • high-quality stainless steel
  • suitable for many different applications and withstands varying water quality
  • lightweight and space-saving design
  • practically maintenance-free

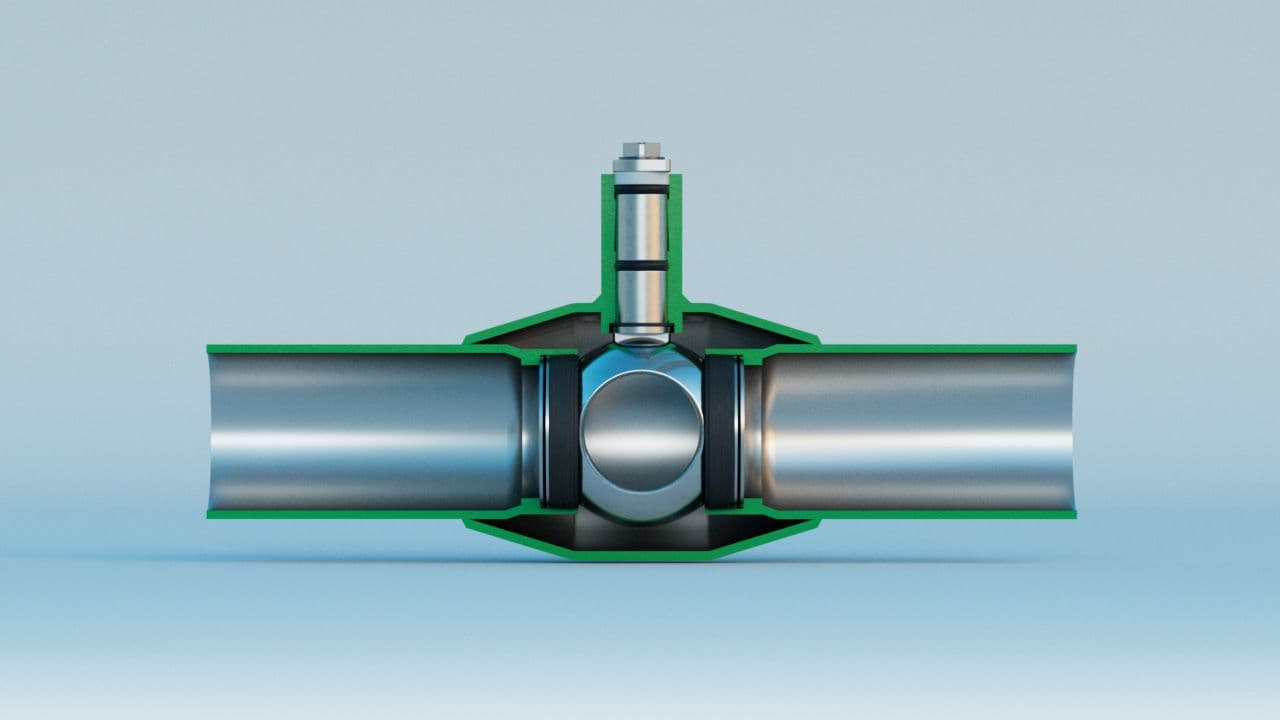

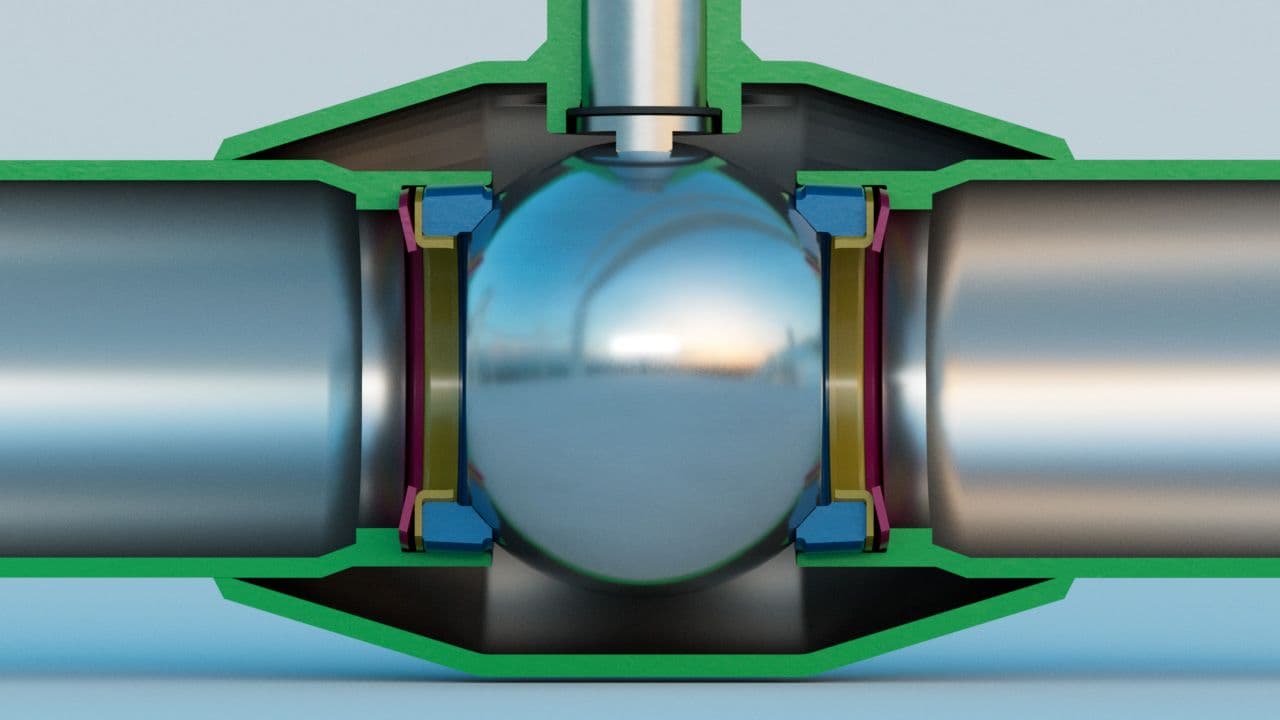

Floating ball structure with spring loaded ball seals

  • total bi-directional tightness (EN 12266-1, leakage rate A)
  • tolerates thermal expansion axial loads
  • takes pressure shocks without damage to the structure

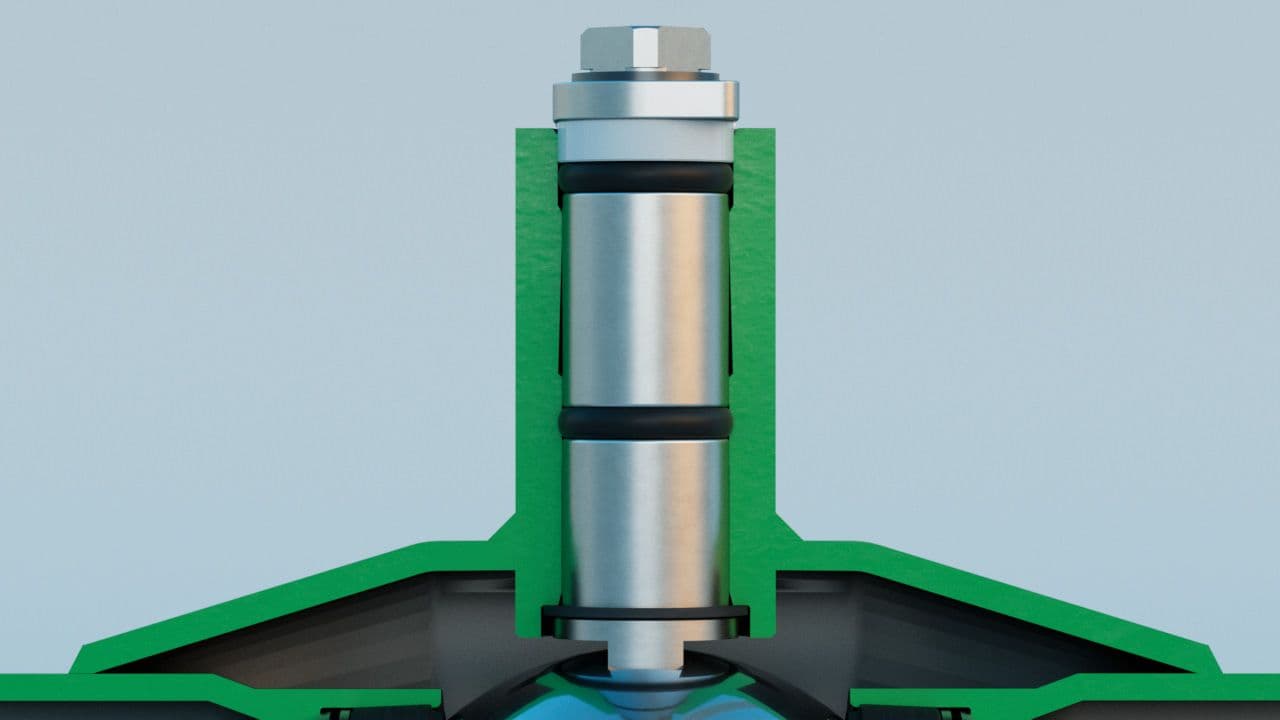

Blow-out safe stem construction

  • ensures safe valve operation
  • 90-degree position limiter
  • valve position is always readable

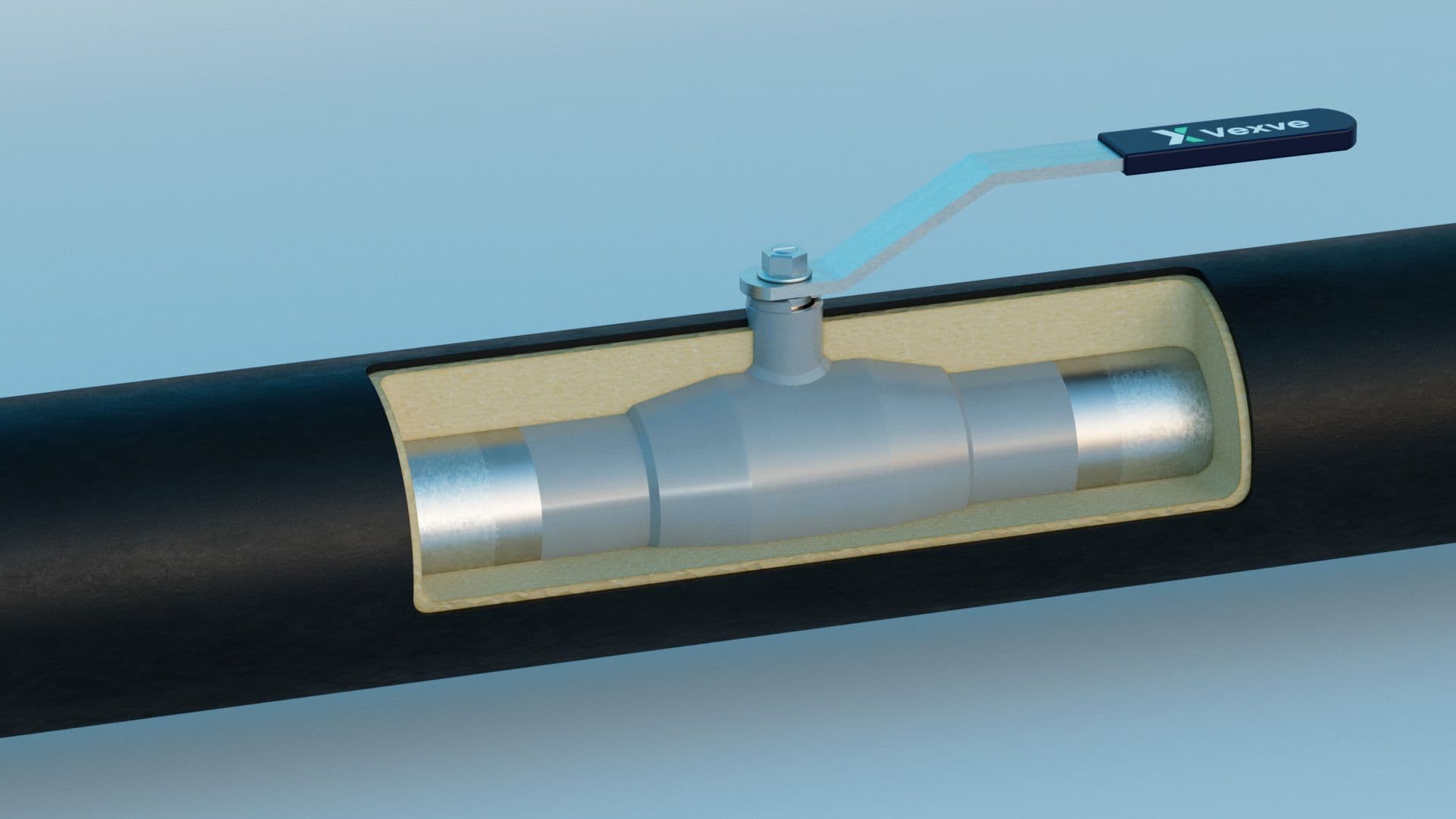

Easy to install and insulate

  • lightweight and simple to install
  • the entire valve is easy to insulate
  • no leakage risk
  • no condensation problems

Stainless steel ball valve main characteristics

Applications

  • heating and cooling systems (HVAC/R)

  • air

  • water, open and closed systems

  • ethanol, methanol, glycol, freezium, etc.

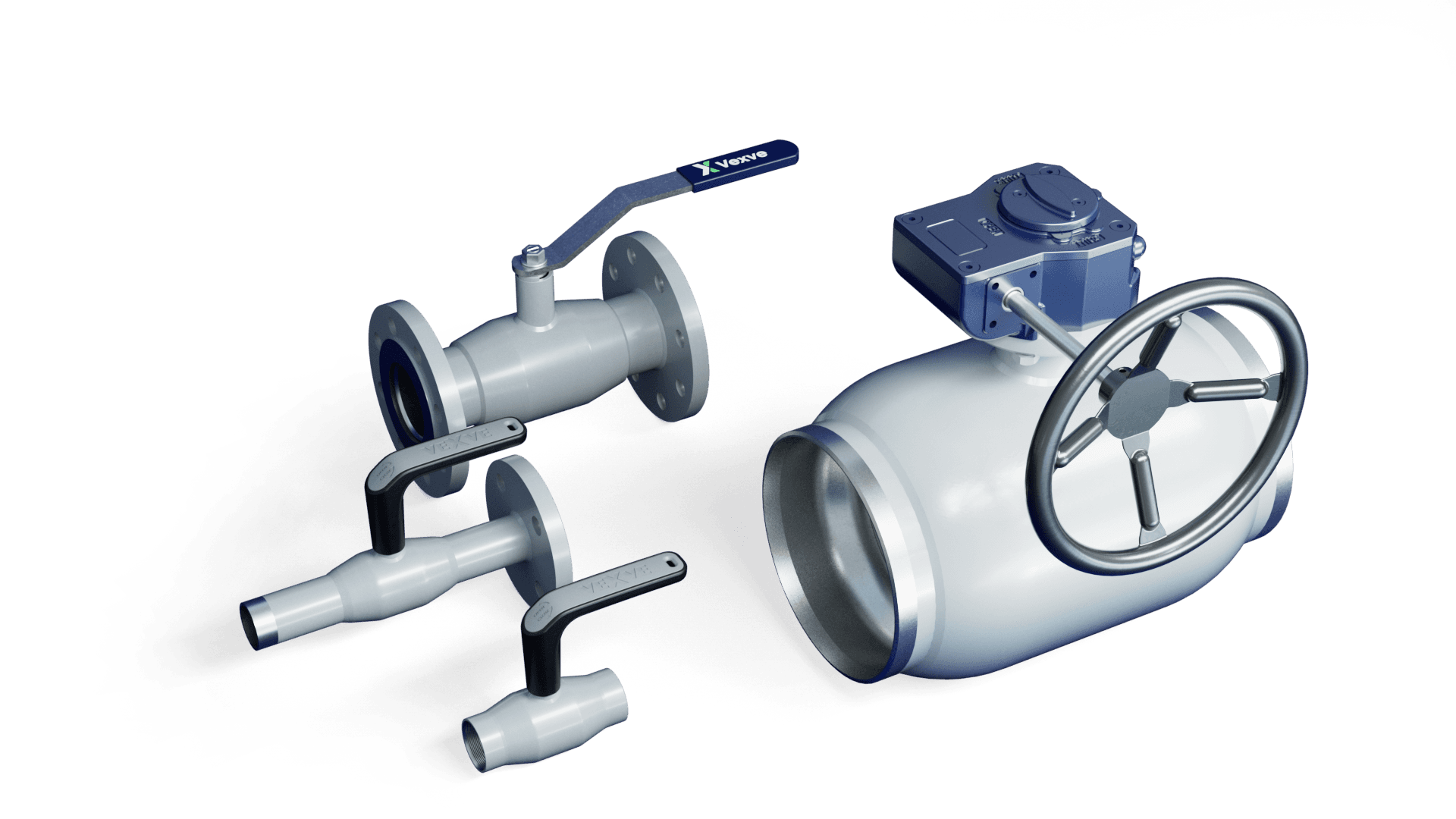

Available

  • in sizes from DN 10 to DN 250

  • with reduced bore

  • with welded connections according to EN (DIN) standards

  • also with flanged or threaded connections

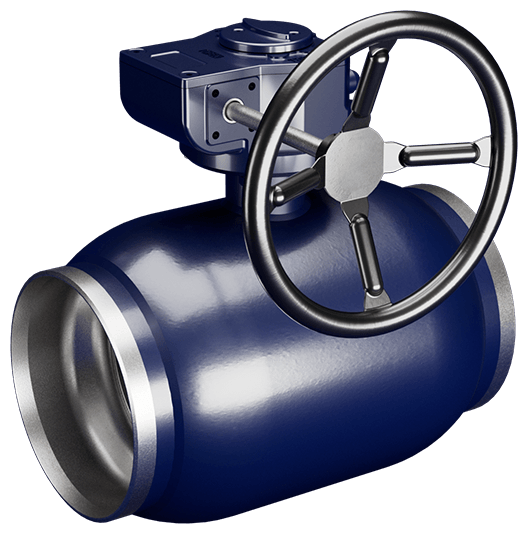

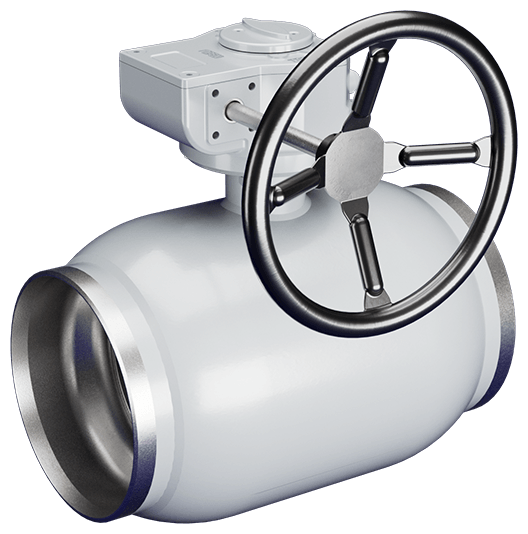

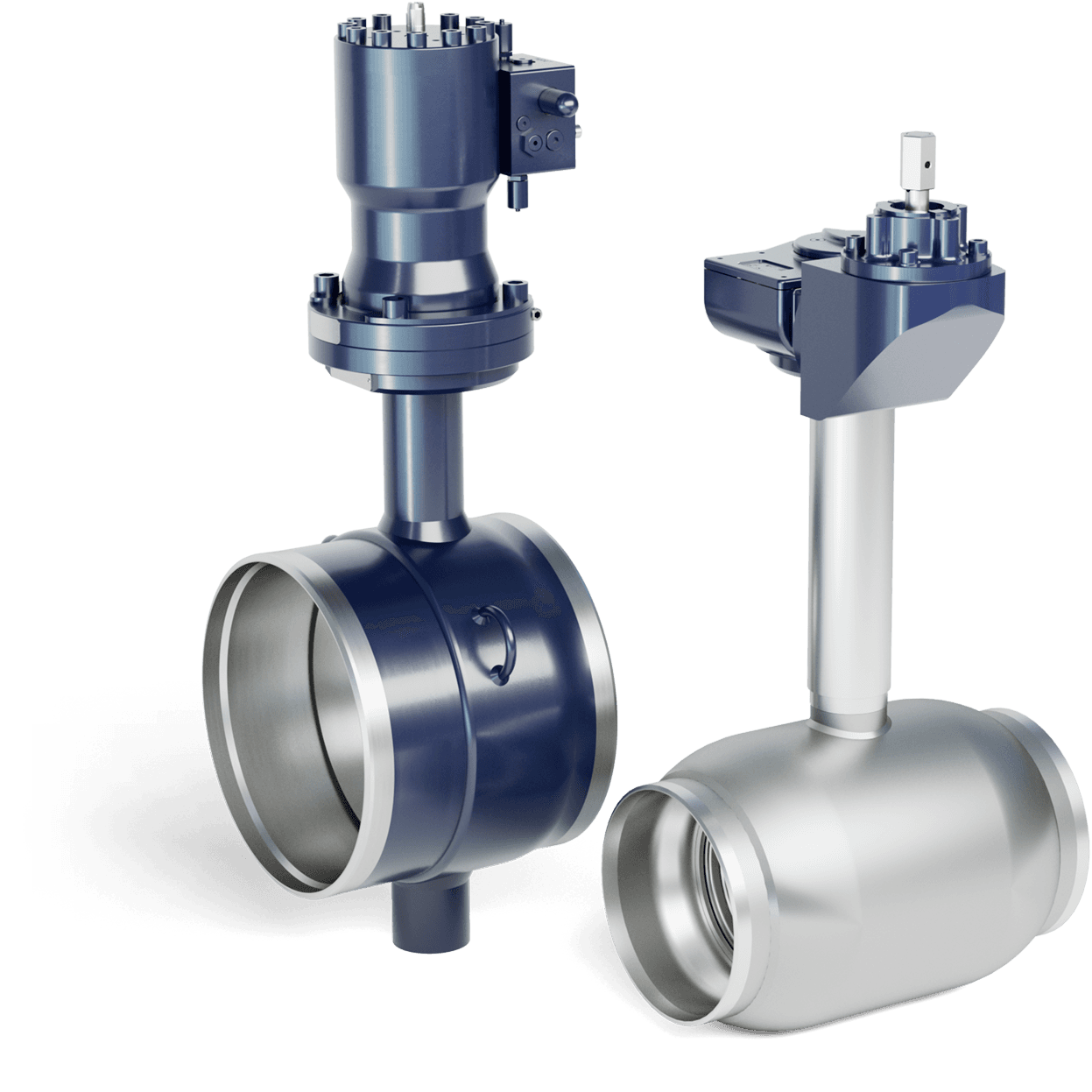

  • with manual lever, manual gear, pneumatic, electric or hydraulic actuator

Characteristics

  • fully welded construction

  • lightweight

  • easy to insulate

  • space saving design

  • easy to install and use

  • maintenance-free

  • long service life

  • total bi-directional tightness (EN 12266-1, leakage rate A)

  • high Kv value (minimum pressure loss, minimized pumping costs)

  • high-quality materials, suitable for many different applications

  • spring loaded PTFE ball seals

  • blow-out safe stem construction

  • stem sealing with double o-rings
