Trunnion mounted ball valve
Série 103/TR, flange / flange, reduced bore, DN 150-900, PN 16
DN 150-900
Materials
| Tělo | DN 150-200: Steel P235GH (1.0345) / P355NH (1.0565) DN 250-450: Steel, P355QH (1.0571) / P355NL1 (1.0566) / P355NH (1.0565) DN 500-900: Steel, P355QH (1.0571) / P355NH (1.0565) |
| Koule | DN 150-900: Steel + stainless plating, ASTM A350 LF2 +Ni |
| Těsnění koule | DN 150-900: PTFE+C |
| Vřeteno | DN 150-900: Stainless steel, X17CrNi16-2 (1.4057) |
| Těsnění vřetena | DN 150-900: FPM |
Připojení
| flange / flange | EN 1092-1 Available PN 16, 25, 40 |
Příslušenství
DN 150 are equipped with: drain valve, DN 200-900 are equipped with: lifting lugs, mounting stand Drain valve: DN 15 for DN 150–200 valves, DN 20 for DN 250-450 valves, DN 32 for DN 500-900 valves |
Ovládání
| DN 150-200 | zinc-plated steel handle |
| DN 250-900 | available with manual gear or with an electric or hydraulic actuator |
DN 250-900 : Valves are available with manual gear or with an electric or hydraulic actuator
Provozní podmínky
| Teplota | 0 °C - +200 °C |
| Třída těsnosti | A (EN 12266-1) |
Below 0 °C contact manufacturer. Lowest allowed ambient temperature -20 °C.
DN 150-900
Oblast vody
Oblast páry (není povoleno)
Krátkodobá provozní oblast

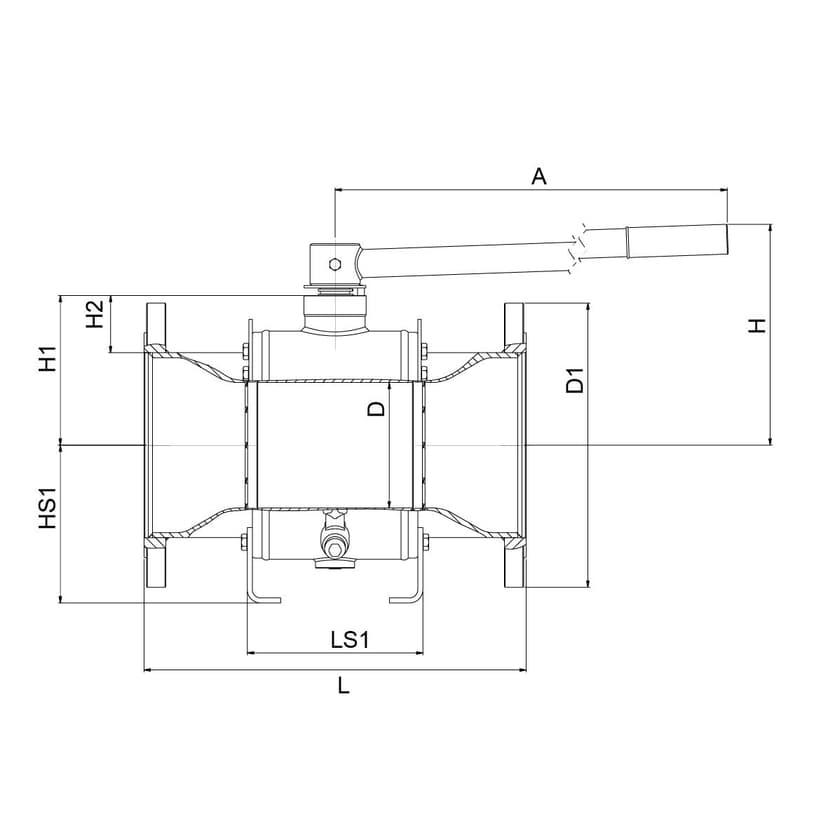

Rozměry
DN 150-900
DN 150-200
DN 200-900
DN 200-900
| DN | PN | Produktové číslo | A | D | D1 | D2 | D3 | D4 | D5 | E | H | H1 | H2 | H3 | HS1 | L | LS1 | LS2 | Kg |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
| 150 | 16 | 103150/TR | 600.0 | 125.0 | 285 | 219.1 | 59.5 | 240 | 22 | 223 | 143.0 | 58 | 394 | 52 | |||||
| 200 | 16 | 103200/TR | 870.0 | 150.0 | 340 | 273.0 | 74.5 | 295 | 22 | 264 | 179.0 | 124 | 189 | 457 | 210 | 180 | 94 | ||
| 250 | 16 | 103250/TR | 201.0 | 405 | 368.0 | 40 | 98.0 | 355 | 26 | 260.0 | 122 | 56 | 235 | 533 | 234 | 200 | 214 | ||
| 300 | 16 | 103300/TR | 250.0 | 460 | 440.0 | 50 | 110.0 | 410 | 26 | 302.0 | 139 | 62 | 282 | 610 | 250 | 240 | 323 | ||
| 350 | 16 | 103350/TR | 300.0 | 520 | 510.0 | 50 | 110.0 | 470 | 26 | 337.0 | 158 | 62 | 314 | 686 | 290 | 280 | 476 | ||
| 400 | 16 | 103400/TR | 340.0 | 580 | 590.0 | 70 | 135.0 | 525 | 30 | 400.0 | 195 | 80 | 360 | 762 | 348 | 320 | 728 | ||
| 450 | 16 | 103450/TR | 385.0 | 640 | 640.0 | 70 | 135.0 | 585 | 30 | 425.0 | 197 | 80 | 390 | 864 | 362 | 350 | 921 | ||
| 500 | 16 | 103500/TR | 436.0 | 715 | 740.0 | 75 | 180.0 | 650 | 33 | 490.0 | 225 | 86 | 530 | 914 | 456 | 400 | 1118 | ||
| 600 | 16 | 103600/TR | 487.0 | 840 | 822.0 | 90 | 200.0 | 770 | 36 | 537.0 | 222 | 88 | 580 | 1065 | 472 | 420 | 1567 | ||
| 700 | 16 | 103700/TR | 589.0 | 910 | 980.0 | 98 | 200.0 | 840 | 36 | 616.0 | 235 | 88 | 660 | 1245 | 524 | 450 | 2493 | ||
| 800 | 16 | 103800/TR | 684.0 | 1025 | 1125.0 | 98 | 230.0 | 950 | 39 | 722.0 | 302 | 111 | 700 | 1372 | 572 | 450 | 3510 | ||
| 900 | 16 | 103900/TR | 779.0 | 1125 | 1290.0 | 120 | 270.0 | 1050 | 39 | 833.0 | 358 | 138 | 840 | 1524 | 700 | 600 | 5341 |
Also available in PN 40. For more information contact our customer service. Sizes DN 500-900 manufactured by ARMATURY Group a.s. - a member of Vexve.
Převodník čísel produktů
| Produktové číslo | Staré číslo Naval |
|---|---|
| 103150/TR | |
| 103200/TR | 285516/TR |
| 103250/TR | 285517/TR |
| 103300/TR | 28553805/TR |
| 103350/TR | 28557505/TR |
| 103400/TR | 28553905/TR |
| 103450/TR | 28557905/TR |
| 103500/TR | 28554005/TR |
| 103600/TR | 28554105/TR |
| 103700/TR | 28554205/TR |
| 103800/TR | 28554305/TR |
| 103900/TR | 28554405/TR |
