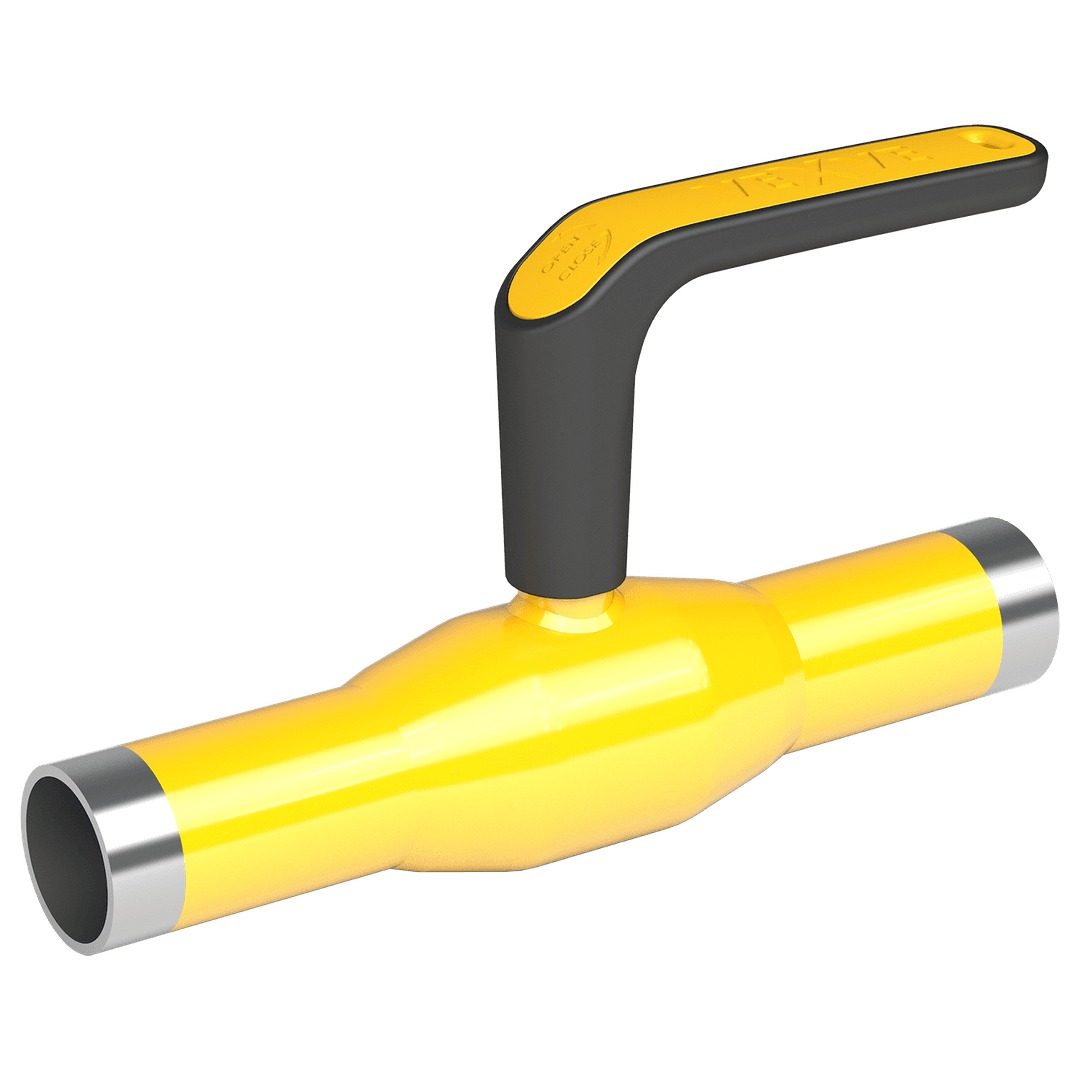

Gas ball valve, welding / welding, EN (DIN), reduced bore, DN 10-500, PN 25-40

Gas ball valve

Série 110, welding / welding, EN (DIN), reduced bore, DN 10-500, PN 25-40

DN 10-50

Tělo	DN 10-500: Steel, P235GH (1.0345)
Koule	DN 10-500: Stainless steel, X5CrNi18-10 (1.4301)
Těsnění koule	DN 10-500: PTFE+C
Vřeteno	DN 10-100: Stainless steel, X8CrNiS18-9 (1.4305) DN 125-150: Stainless steel, X17CrNi16-2 (1.4057) DN 200-500: Stainless steel, X8CrNiS18-9 (1.4305)
Těsnění vřetena	DN 10-50: FPM/NBR DN 65-500: NBR

welding / welding, EN (DIN)

DN 10-50	composite handle
DN 65-250	zinc-plated steel handle
DN 300-500	available with manual gear or with an electric or hydraulic actuator

We recommend manual gear operation for sizes DN 200 and larger.

Teplota	-40 °C - +70 °C
Třída těsnosti	A (EN 12266-1)

Below -30 °C contact manufacturer. Lowest allowed ambient temperature -40 °C.

DN 10-500

DN 10-50

DN 65-150

DN 200-250

DN 300-500

DN	PN	Produktové číslo	A	D	D1	D2	D3	H	H1	L	S	Kg
10	40	110010X	130.0	10.0	17.2	33.7	32	119	86.0	230	2.0	0.6
15	40	110015X	130.0	10.0	21.3	33.7	32	119	86.0	230	2.0	0.6
20	40	110020X	130.0	15.0	26.9	42.4	32	123	87.0	230	2.3	0.9
25	40	110025X	130.0	20.0	33.7	48.3	32	125	86.0	230	2.6	0.9
32	40	110032X	130.0	25.0	42.4	60.3	32	129	85.0	260	2.6	1.4
40	40	110040X	130.0	32.0	48.3	70.0	32	133	87.0	260	2.6	1.5
50	40	110050X	130.0	40.0	60.3	76.1	32	140	88.0	300	2.9	2.1
65	25	110065	277.5	50.0	76.1	101.6		159	62.0	300	2.9	4.0
80	25	110080	277.5	65.0	88.9	121.0		171	68.0	300	3.2	5.3
100	25	110100	278.5	80.0	114.3	139.7		218	101.0	325	3.6	8.3
125	25	110125	400.0	100.0	139.7	177.8		252	101.0	325	4.0	13.4
150	25	110150	600.0	125.0	168.3	219.1		272	107.0	350	4.5	18.0
200	25	110200	870.0	150.0	219.1	273.0		280	92.0	400	4.5	39.0
250	25	110250	1200.0	200.0	273.0	355.6		350	108.0	530	5.0	74.0
300	25	110300		250.0	323.9	457.0	50		133.0	550	5.6	110.0
350	25	110350		290.0	355.6	508.0	50		192.0	686	6.3	170.0
400	25	110400		340.0	406.4	610.0	70		242.0	762	7.0	250.0
500	25	110500		390.0	508.0	660.0	90		259.0	914	7.0	400.0

Produktové číslo	Staré číslo Naval	EAN	LVI	RSK	NRF
110010X		6415837852687	3785268	5495255	5599434
110015X		6415837852694	3785269	5495256	5599435
110020X		6415837852700	3785270	5495257	5599436
110025X		6415837852717	3785271	5495258	5599437
110032X		6415837852724	3785272	5495259	5599438
110040X		6415837852731	3785273	5495260	5599439
110050X		6415837852748	3785274	5495261	5599441
110065	280410	6415837850485	3785048
110080	280411	6415837850492	3785049
110100	280412	6415837850515	3785051
110125	280413	6415837850539	3785053
110150	280414	6415837850546	3785054
110200	280416	6415837850560	3785056
110250	280417	6415837850584	3785058
110300	28043805	6415837850607	3785060
110350	28049805	6415837850683	3785068
110400	28043905	6415837850690	3785069
110500	28044005	6415837850706	3785070
