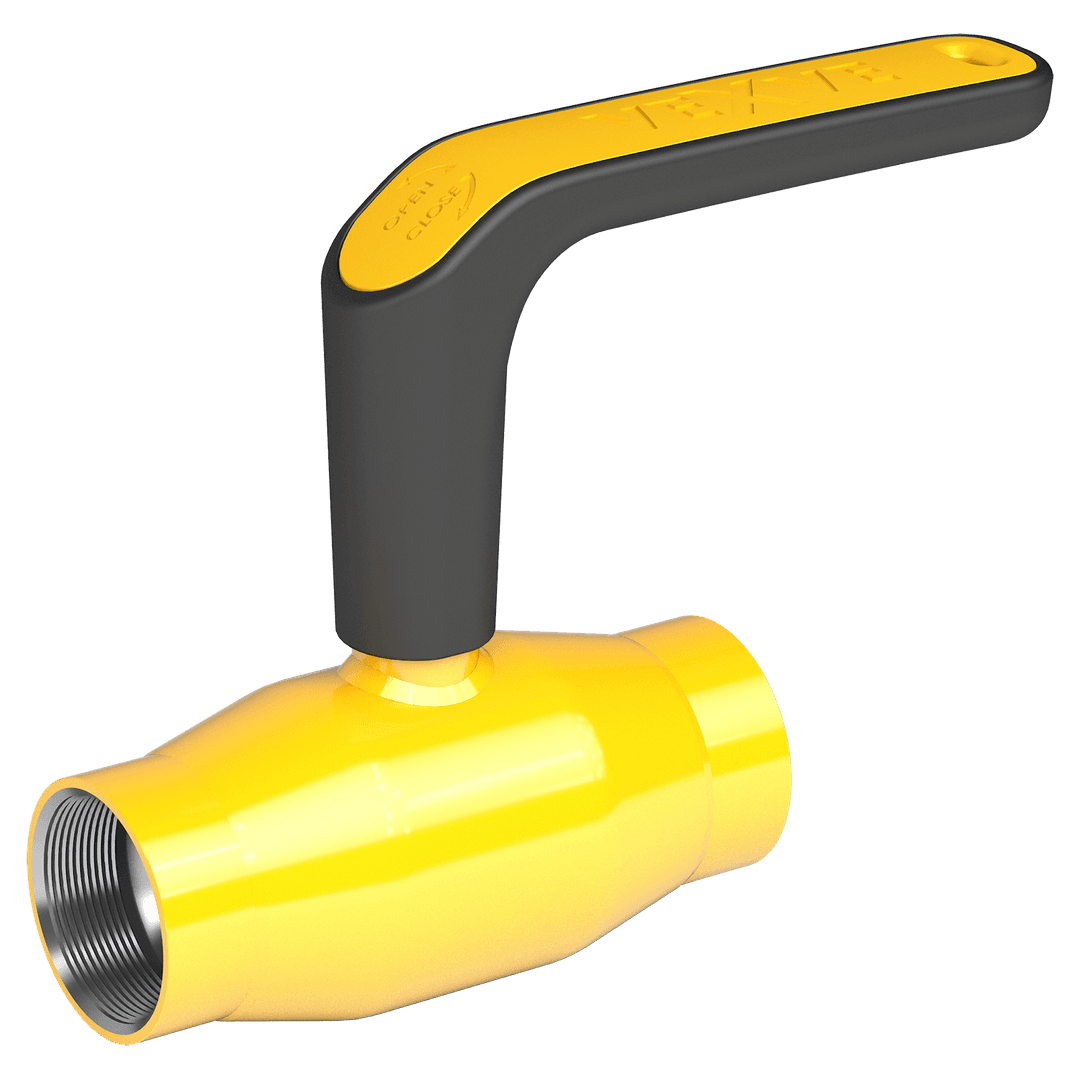

Kv Value Chart Of Vexve Floating Ball Valves
PDF
DN 15-50
Materials
| Tělo | DN 15-50: Steel, P235GH (1.0345) |
| Koule | DN 15-50: Stainless steel, X5CrNi18-10 (1.4301) |
| Těsnění koule | DN 15-50: PTFE+C |
| Vřeteno | DN 15-50: Stainless steel, X8CrNiS18-9 (1.4305) |
| Těsnění vřetena | DN 15-50: FPM/NBR |
Připojení
| female threads / female threads |
Ovládání
| DN 15-50 | composite handle |
Provozní podmínky
| Teplota | -40 °C - +70 °C |
| Třída těsnosti | A (EN 12266-1) |
Below -30 °C contact manufacturer. Lowest allowed ambient temperature -40 °C.
DN 15-50

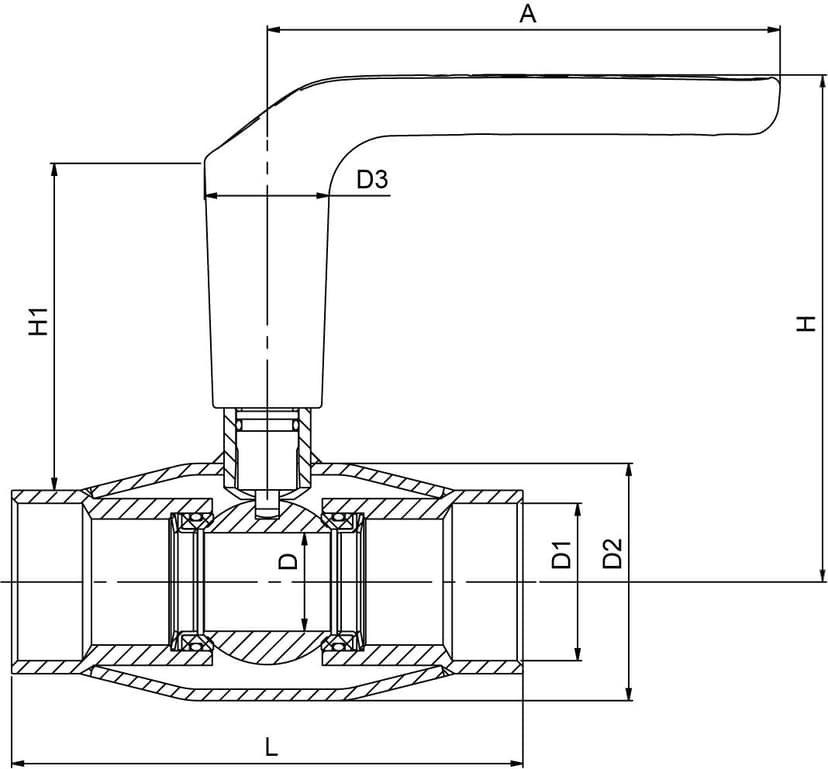

Rozměry
DN 15-50
DN 15-50
| DN | PN | Produktové číslo | A | D | D1 | D2 | D3 | H | H1 | L | Kg |
|---|---|---|---|---|---|---|---|---|---|---|---|
| 15 | 40 | 112015X | 130.0 | 10.0 | Rp 1/2 | 33.7 | 32 | 119 | 84.0 | 85 | 0.4 |
| 20 | 40 | 112020X | 130.0 | 15.0 | Rp 3/4 | 42.4 | 32 | 123 | 81.0 | 100 | 0.6 |
| 25 | 40 | 112025X | 130.0 | 20.0 | Rp 1 | 48.3 | 32 | 125 | 84.0 | 115 | 0.7 |
| 32 | 40 | 112032X | 130.0 | 25.0 | Rp 1 1/4 | 60.3 | 32 | 129 | 83.0 | 130 | 1.1 |
| 40 | 40 | 112040X | 130.0 | 32.0 | Rp 1 1/2 | 70.0 | 32 | 133 | 84.0 | 205 | 1.4 |
| 50 | 40 | 112050X | 130.0 | 40.0 | Rp 2 | 76.1 | 32 | 140 | 85.0 | 205 | 2.0 |
Převodník čísel produktů
| Produktové číslo | EAN | LVI | RSK | NRF |
|---|---|---|---|---|
| 112015X | 6415837852830 | 3785283 | 5495269 | 5599448 |
| 112020X | 6415837852847 | 3785284 | 5495270 | 5599449 |
| 112025X | 6430079560015 | 3785310 | 5495271 | 5599451 |
| 112032X | 6415837852854 | 3785285 | 5495272 | 5599452 |
| 112040X | 6415837852861 | 3785286 | 5495273 | 5599453 |
| 112050X | 6415837852878 | 3785287 | 5495274 | 5599454 |
Technická dokumentace produktu
Operation manuals
Vexve Ball Valves Operating Torques EN
PDF
X-series valves, coupling dimensions
PDF
Vexve X shut-off and balancing valves instructions for installation, operation, adjustment and maintenance
PDF
