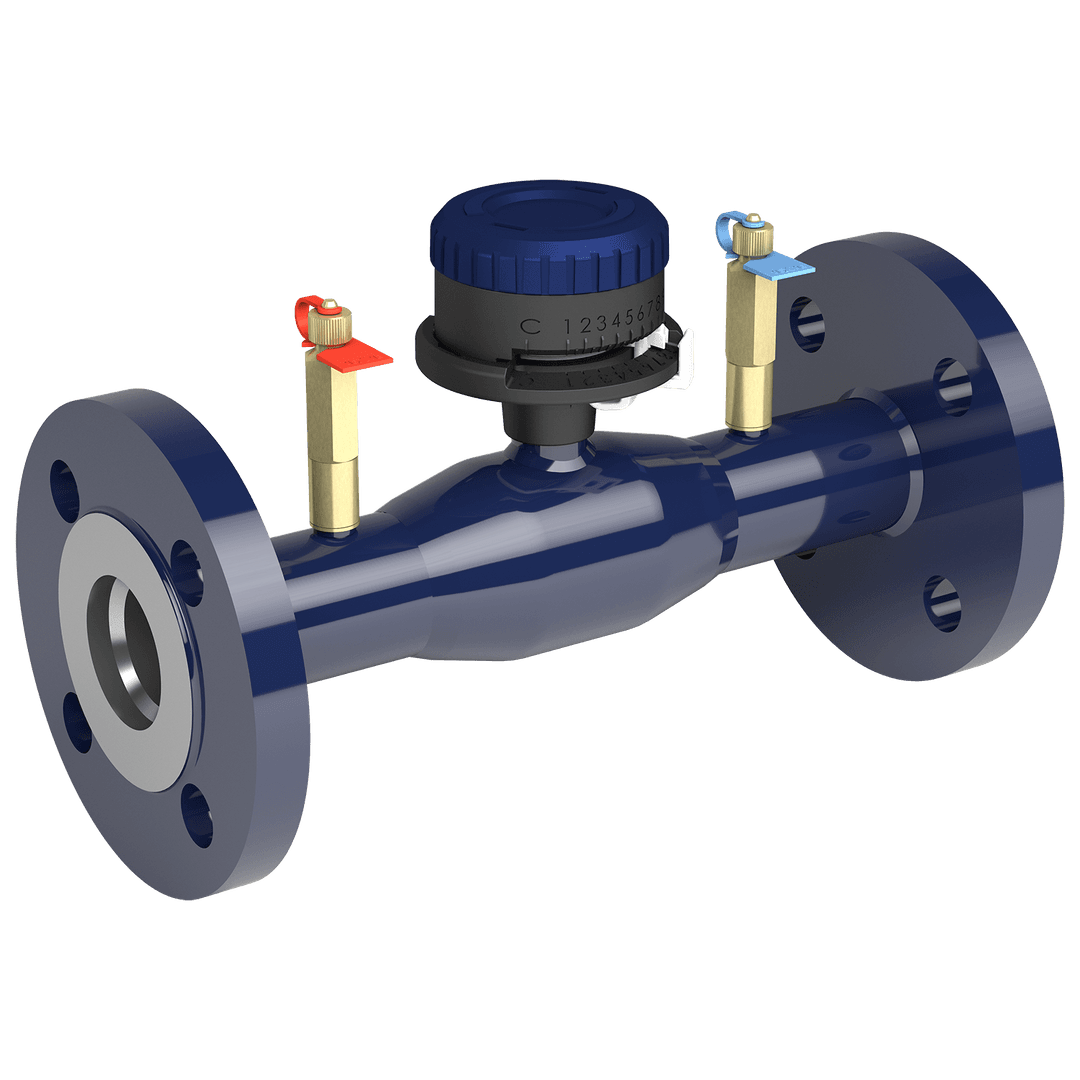

Balancing valve, steel, flange / flange, reduced bore, DN 15-400, PN 16-25

Balancing valve, steel

Série 143, flange / flange, reduced bore, DN 15-400, PN 16-25

DN 15-50

Tělo	DN 15-400: Steel, P235GH (1.0345)
Koule	DN 15-50: Stainless steel, X5CrNi18-10 (1.4301), flowtube composite DN 65-400: Stainless steel, X5CrNi18-10 (1.4301)
Těsnění koule	DN 15-400: PTFE+GF
Vřeteno	DN 15-100: Stainless steel, X8CrNiS18-9 (1.4305) DN 125-150: Stainless steel, X17CrNi16-2 (1.4057) DN 200-400: Stainless steel, X8CrNiS18-9 (1.4305)
Těsnění vřetena	DN 15-400: FPM
Measuring block	DN 15-400: Self-sealing, brass / EPDM

flange / flange

EN 1092-1

Available PN 10, 16, 25, 40

Teplota	-20 °C - +200 °C
Třída těsnosti	A (EN 12266-1)

DN 15–50: -20 °C – +120 °C. Below -20℃ contact manufacturer. Lowest allowed ambient temperature -40℃.

DN 15-50

DN 65-400

Oblast vody

Oblast páry (není povoleno)

Krátkodobá provozní oblast

DN 15-50

DN 65-150

DN 200-300

DN 200-300

DN 350-400

DN 350-400

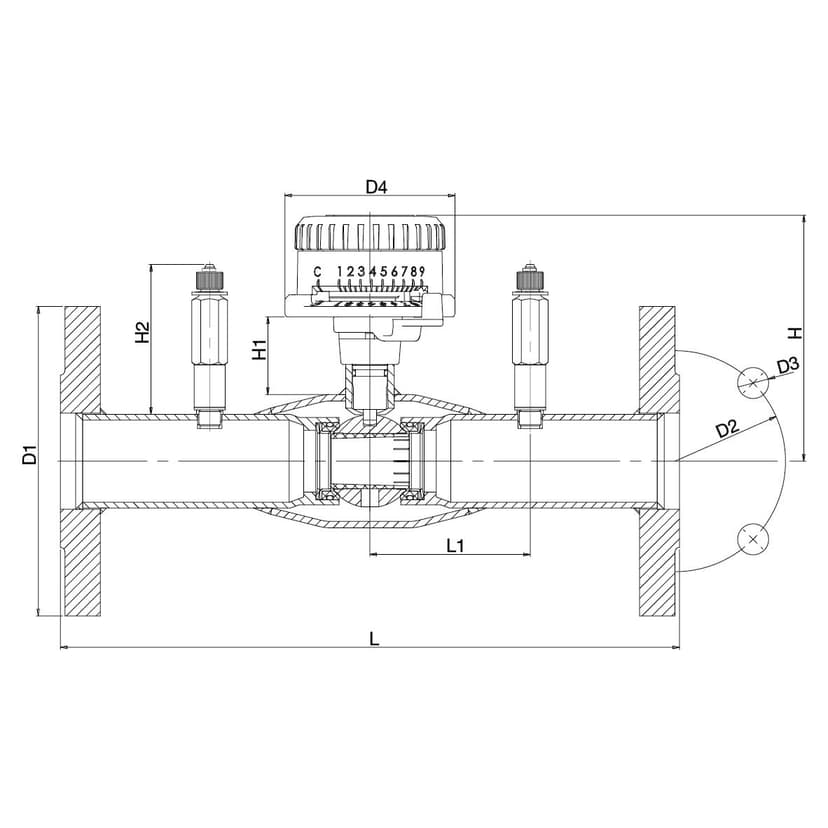

DN	PN	Produktové číslo	A	B	C	D	D1	D2	D3	D4	E	H	H1	H2	L	L1	Kg
15	25	143015X					95	65	14	77		101	38.5	68	250	73.0	2.0
20	25	143020X					105	75	14	77		105	38.0	68	250	73.0	2.8
25	25	143025X					115	85	14	77		107	37.0	68	240	73.0	3.1
32	25	143032X					140	100	18	77		111	35.0	68	280	73.0	4.9
40	25	143040X					150	110	18	77		116	35.0	68	270	73.0	5.4
50	25	143050X					165	125	18	77		123	39.0	68	310	73.0	7.2
65	16	143065	280.0				185	145	18			160	58.0	108	310	110.0	10.5
80	16	143080	280.0				200	160	18			173	64.0	108	310	110.0	12.6
100	16	143100	280.0				220	180	18			219	98.0	132	350	122.5	17.5
125	16	143125	400.0				250	210	18			253	100.0	130	360	137.5	26.1
150	16	143150	600.0				285	240	22			276	110.0	131	370	150.0	34.6
200	16	143200	268.0	244	69		340	295	22	250	293		72.0	126	425	198.0	61.0
250	16	143250	301.0	294	97		405	355	26	300	345		88.0	132	550	259.0	116.0
300	16	143300	424.0	349	138		460	410	26	600	422		112.0	134	580	272.0	163.0
350	16	143350	424.0	424	138	290.0	520	470	26	600	498		192.0	148	706	333.5	275.0
400	16	143400	440.0	500	138	340.0	580	525	30	500	573		242.0	152	810	384.0	382.0

Vexve's balancing valves can be found e.g. from libraries of TA-SCOPE and SmartBalancing measuring devices.

Produktové číslo	Staré číslo Naval	EAN	LVI	RSK	NRF
143015X		6415840426707	4042670	5495197	5599369
143020X		6415840426714	4042671	5495198	5599371
143025X		6415840426721	4042672	5495199	5599372
143032X		6415840426738	4042673	5495200	5599373
143040X		6415840426745	4042674	5495201	5599374
143050X		6415840426752	4042675	5495202	5599375
143065	265510V	6415840183631	4018363	4891327	5599248
143080	265511V	6415840183648	4018364	4891328	5599249
143100	265512V	6415840183679	4018367	4891329	5599251
143125	265513V	6415840183686	4018368	4891330	5599252
143150	265514V	6415840183693	4018369	4891331	5599253
143200	265536V	6415840183709	4018370	4891332	5599254
143250	265537V	6415840183716	4018371	4891333	5599255
143300	265538V	6415840183808	4018380	4891334	5599256
143350
143400	265539	6415840116486
