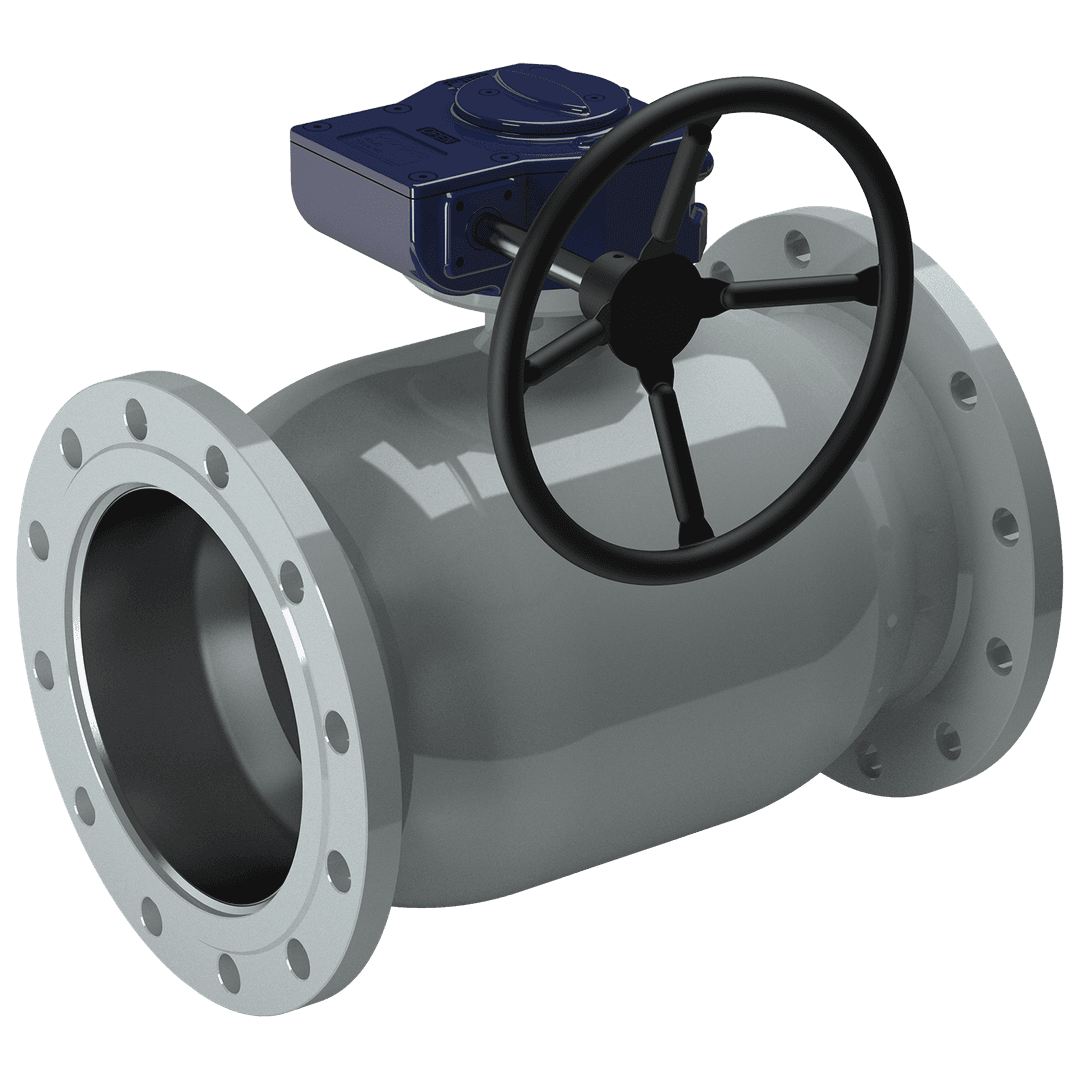

Stainless steel ball valve
Série 234xx1/25, flange / flange, reduced bore, DN 100-300, PN 25
DN 100-300
Materials
| Tělo | DN 100-300: Stainless steel, X2CrNiMo17-12-2 (1.4404) |
| Koule | DN 100-300: Stainless steel, X2CrNiMo17-12-2 (1.4404) |
| Těsnění koule | DN 100-300: PTFE+C |
| Vřeteno | DN 100-300: Stainless steel, X2CrNiMo17-12-2 (1.4404) |
| Těsnění vřetena | DN 100-300: FPM/NBR |
Připojení
| flange / flange | EN 1092-1 Available PN 10, 16, 25, 40 |
Ovládání
| DN 100-300 | manual gear |
Provozní podmínky
| Teplota | -20 °C - +200 °C |
| Třída těsnosti | A (EN 12266-1) |
Below -20 °C contact manufacturer. Lowest allowed ambient temperature -40 °C.
DN 100-300

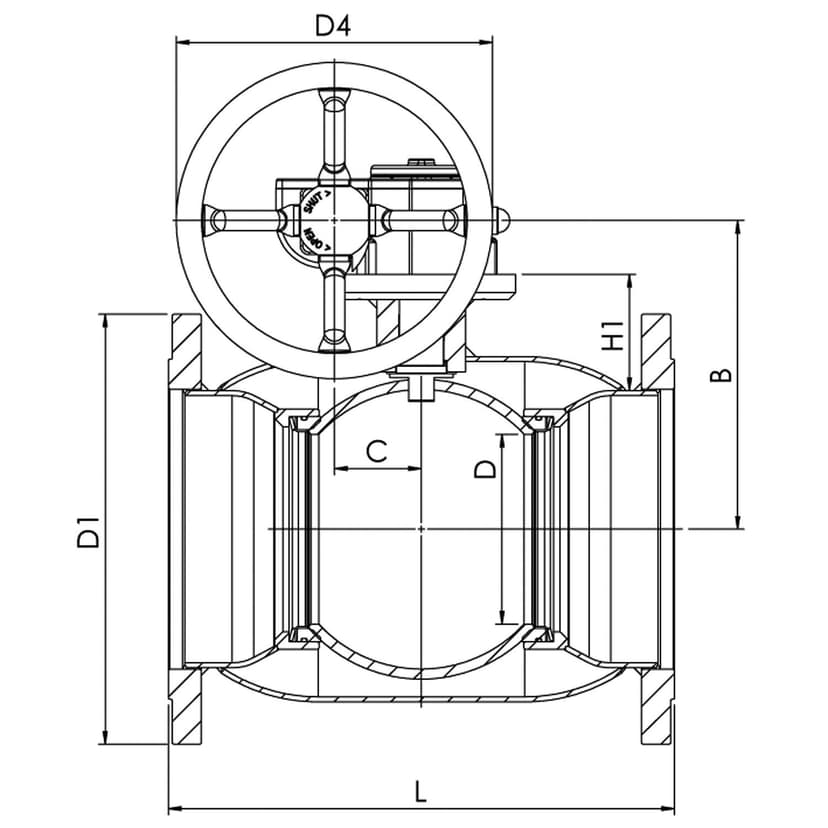

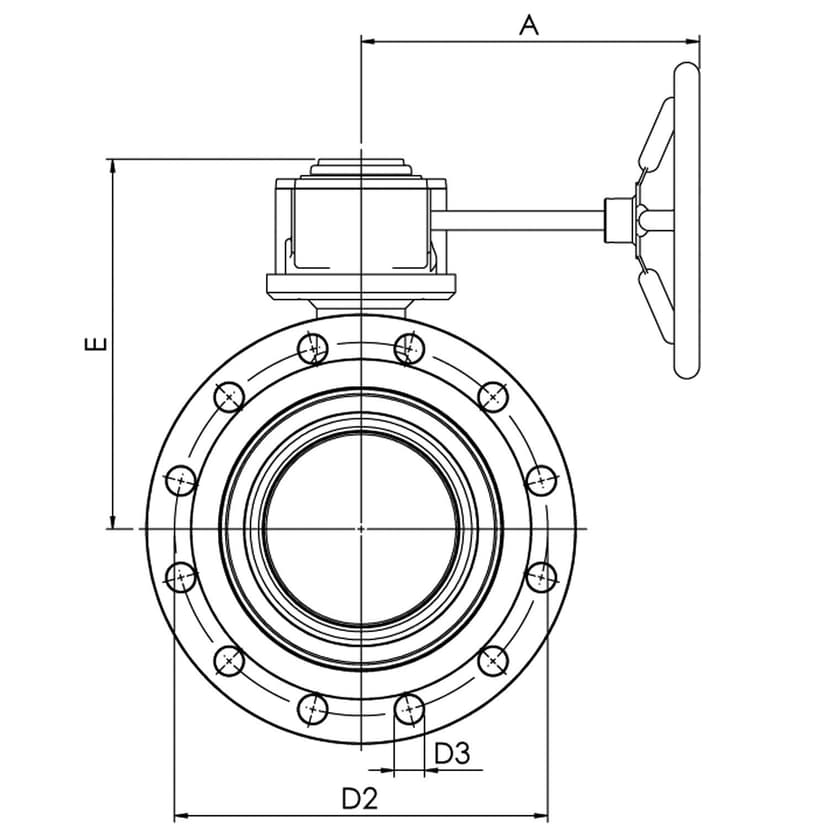

Rozměry
DN 100-300
DN 100-300
DN 100-300
| DN | PN | Produktové číslo | A | B | C | D | D1 | D2 | D3 | D4 | E | H1 | L | Kg |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
| 100 | 25 | 234101/25 | 187.0 | 159 | 53 | 80.0 | 235 | 190 | 22 | 125 | 202 | 68.0 | 300 | 28 |
| 125 | 25 | 234126/25 | 224.0 | 183 | 53 | 100.0 | 270 | 220 | 26 | 200 | 225 | 79.0 | 325 | 34 |
| 150 | 25 | 234151/25 | 224.0 | 203 | 53 | 125.0 | 300 | 250 | 26 | 200 | 246 | 85.0 | 350 | 40 |
| 200 | 25 | 234201/25 | 268.0 | 244 | 69 | 150.0 | 360 | 310 | 26 | 250 | 293 | 92.0 | 400 | 66 |
| 250 | 25 | 234251/25 | 301.0 | 294 | 97 | 200.0 | 425 | 370 | 30 | 300 | 345 | 108.0 | 550 | 120 |
| 300 | 25 | 234301/25 | 424.0 | 349 | 138 | 250.0 | 485 | 430 | 30 | 600 | 422 | 132.0 | 565 | 191 |
Převodník čísel produktů
| Produktové číslo | Staré číslo Naval | EAN | LVI |
|---|---|---|---|
| 234101/25 | 286522 | 6415837651600 | 3765160 |
| 234126/25 | 286523 | 6415837651617 | 3765161 |
| 234151/25 | 286524 | 6415837651624 | 3765162 |
| 234201/25 | 286526 | 6415837651631 | 3765163 |
| 234251/25 | 286527 | 6415837651648 | 3765164 |
| 234301/25 |
Technická dokumentace produktu
Operation manuals
Kv Value Chart Of Vexve Floating Ball Valves
PDF
PDF
Vexve Ball Valves Operating Torques EN
PDF
PDF
