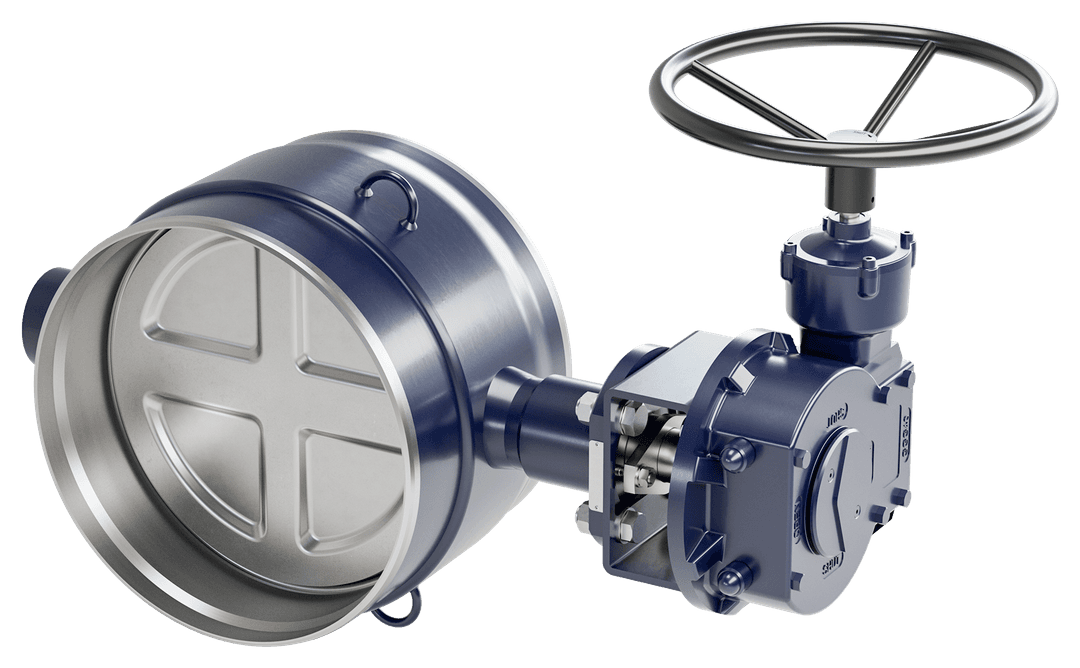

Control and shut-off butterfly valve

Série BFCW1/GS, welding / welding, GOST, full bore, DN 300-800, PN 16

DN 300-800
Stáhnout technickou dokumentaci

Materials

Tělo
DN 300-500: Steel, P235GH (1.0345)
DN 600-800: Steel, P355 NL1 (1.0566)
Disk
DN 300-800: Stainless steel, GX5CrNiMo19-11-2 (1.4408)
Sedla
DN 300-800: 1.4542 + HCr plating
Vřeteno
DN 300-800: Stainless steel, X3CrNiMoN27-5-2 (1.4460)
Těsnění vřetena
DN 300-800: Graphite
Ložiska
DN 300-800: PTFE + AISI 316 net

Připojení

welding / welding, GOST

Ovládání

DN 300-800
manual gear

Provozní podmínky

Tělo
PN 25
Trim
Teplota
-40 °C - +250 °C
Třída těsnosti
A (EN 12266-1)

Below 0 °C contact manufacturer. Lowest allowed ambient temperature -40 °C.

DN 300-800

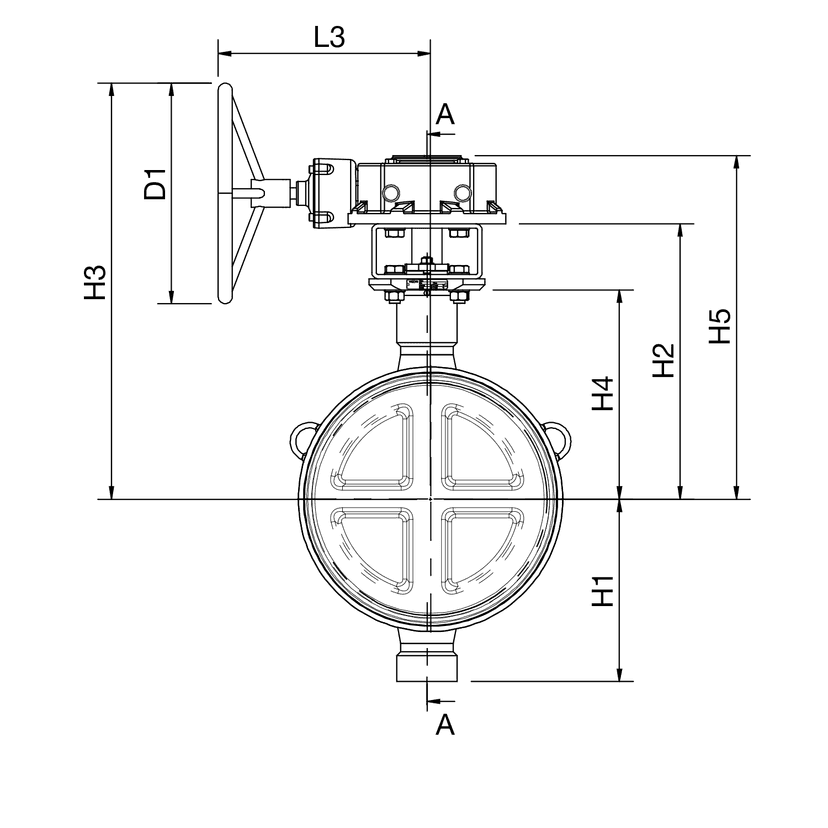

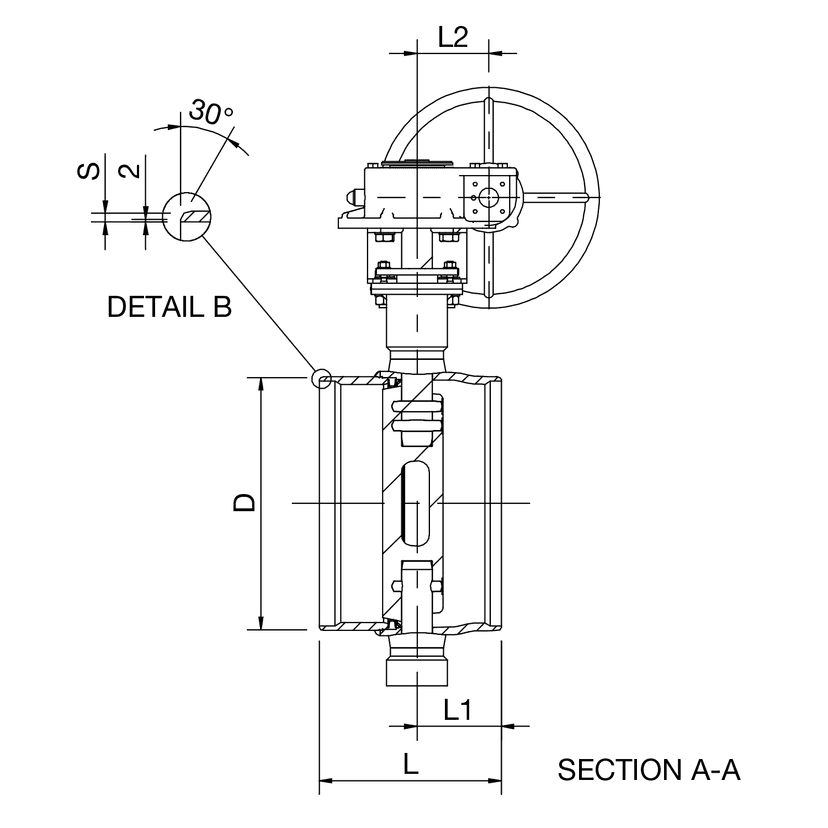

Rozměry

DN 300-800
DN 300-800
DN 300-800
DNPNProduktové čísloDD1H1H2H3H4H5LL1L2L3SKg
30016BFC300W1/GS325.0400247.0435683315537270110.0105331786
35016BFC350W1/GS377.0400255.0445693325547290134.01053318103
40016BFC400W1/GS426.0500285.0467772347590310157.01303938125
45016BFC450W1/GS478.0400330.0499754379622330153.01303868184
50016BFC500W1/GS530.0400360.0528783408651350153.01303869205
60016BFC600W1/GS630.0500440.0575887450728390184.014041911334
70016BFC700W1/GS720.0400495.0625884501784430203.018244112464
80016BFC800W1/GS820.0500581.07331068573911470226.020948312806
