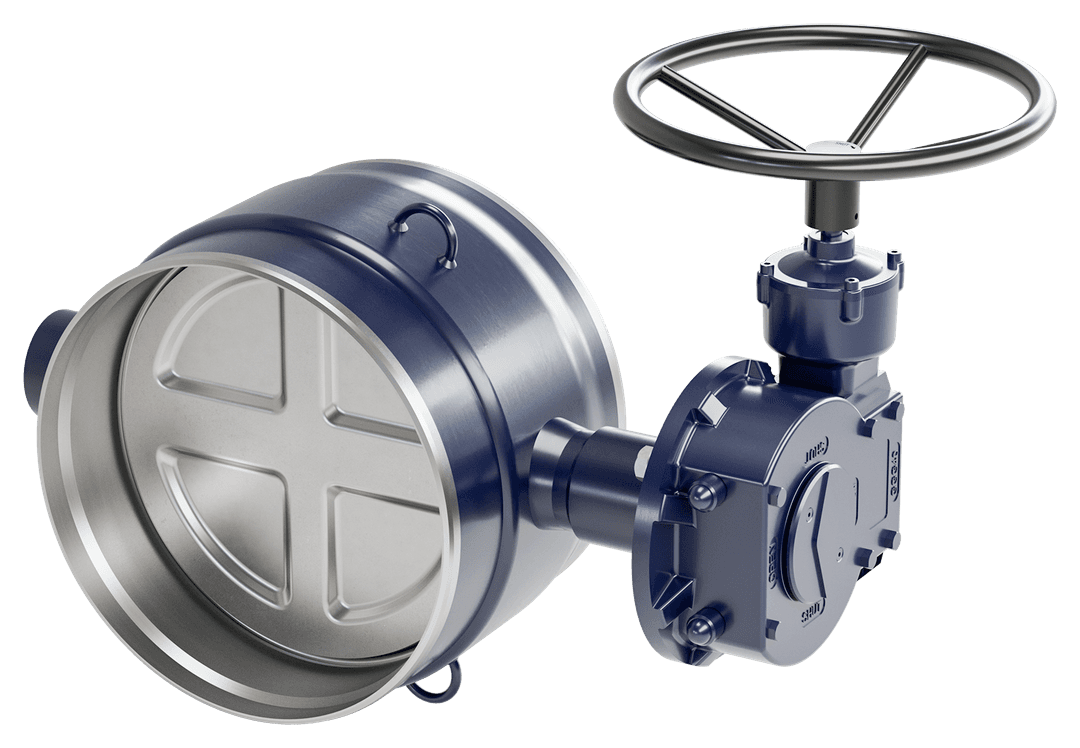

Shut-off butterfly valve

Série BFSW2, welding / welding, EN (DIN), full bore, DN 300-800, PN 25

DN 300-800
Stáhnout technickou dokumentaci

Materials

Tělo
DN 300-500: Steel, P235GH (1.0345)
DN 600-800: Steel, P355 NL1 (1.0566)
Disk
DN 300-800: Stainless steel, GX5CrNiMo19-11-2 (1.4408)
Sedla
DN 300-800: 1.4542 + HCr plating
Vřeteno
DN 300-800: Stainless steel, X3CrNiMoN27-5-2 (1.4460)
Těsnění vřetena
DN 300-800: FPM
Ložiska
DN 300-800: PTFE + AISI 316 net

Připojení

welding / welding, EN (DIN)

Ovládání

DN 300-800
manual gear

Provozní podmínky

Tělo
PN 25
Trim
Teplota
-40 °C - +200 °C
Třída těsnosti
A or B (EN 12266-1) depending on requirement

Below 0 °C contact manufacturer. Lowest allowed ambient temperature -40 °C.

DN 300-800

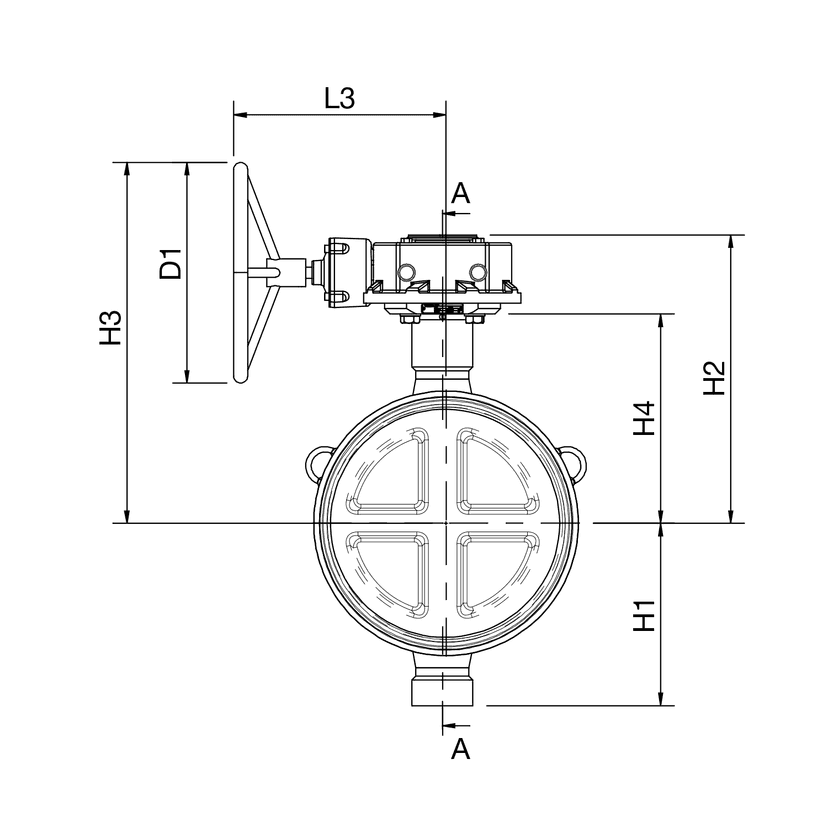

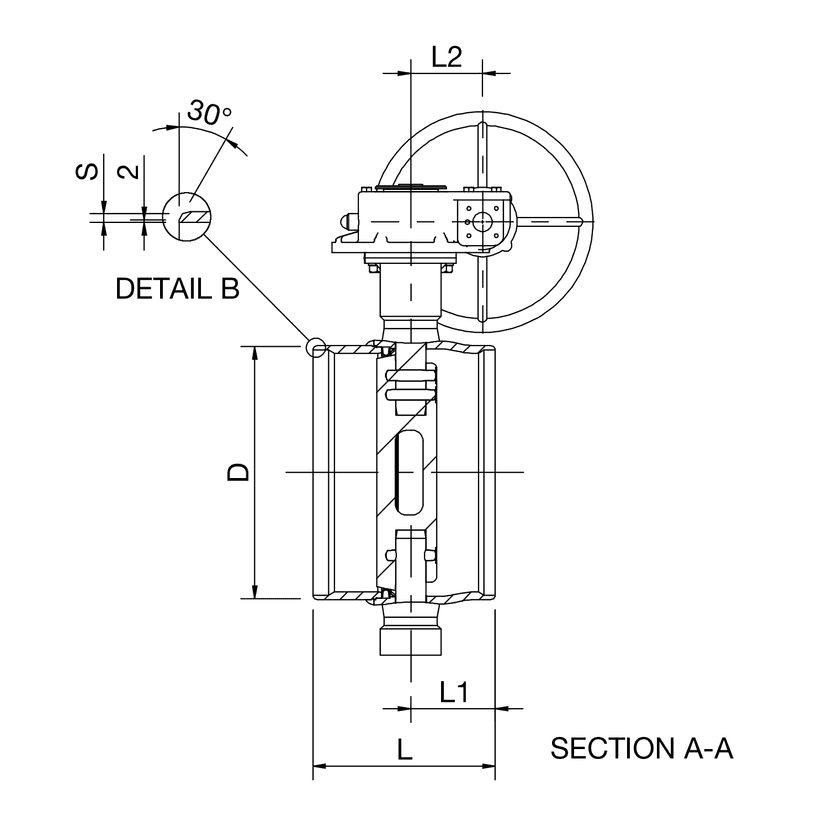

Rozměry

DN 300-800
DN 300-800
DN 300-800
DNPNProduktové čísloDD1H1H2H3H4LL1L2L3SKg
30025BFS300W2323.9400247.0432583315270110.01053315.680
35025BFS350W2355.6400255.0443593325290134.01053315.694
40025BFS400W2406.4500285.0490672347310157.01303936.3118
45025BFS450W2457.0400330.0522654379330153.01303866.3172
50025BFS500W2508.0400360.0551683408350153.01303866.3196
60025BFS600W2610.0500440.0628787450390184.01404197.1317
70025BFS700W2711.0400495.0684784501430203.01824418.0446
80025BFS800W2813.0500581.0791948573470226.02094838.8770

Převodník čísel produktů

Produktové čísloLVIRSKNRF
BFS300W240426534506193
BFS350W2404262445006265536012
BFS400W2404262545006275536013
BFS450W240426605536014
BFS500W2404262645006285536015
BFS600W2404262745006295536016
BFS700W2404262845006305536017
BFS800W2404262945006315536018
