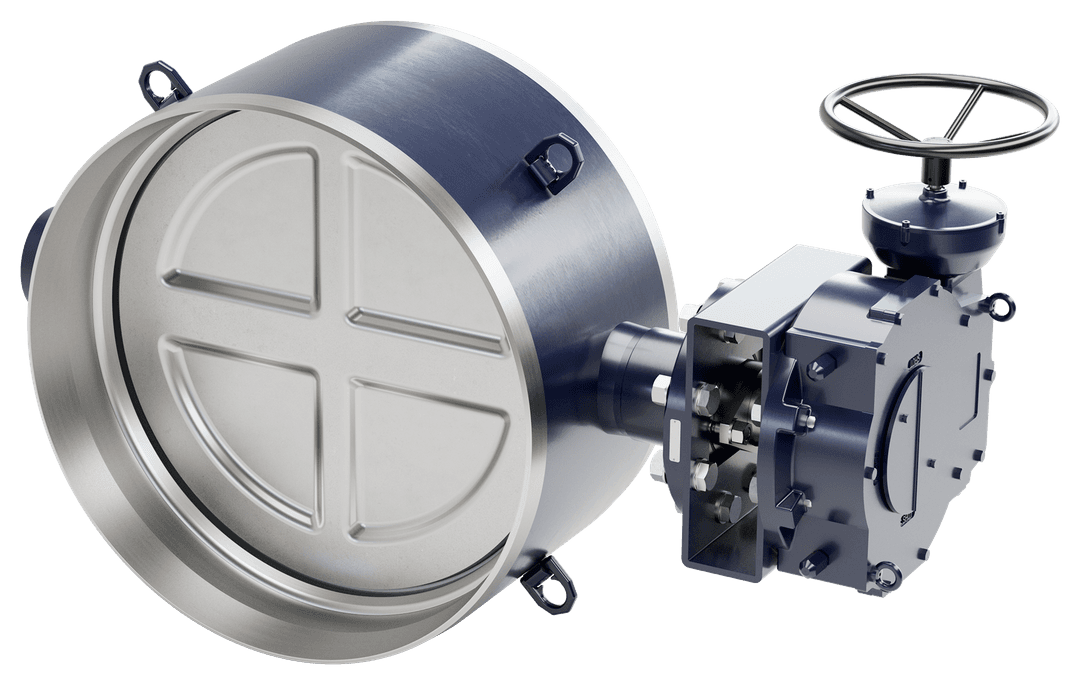

Control and shut-off butterfly valve

Série BRCW2, welding / welding, EN (DIN), reduced bore, DN 900-1200, PN 25

DN 900-1200
Stáhnout technickou dokumentaci

Materials

Tělo
DN 900-1200: Steel, P355NL1 (1.0566) / P355QH1 (1.0571)
Disk
DN 900-1200: Stainless steel, GX5CrNiMo19-11-2 (1.4408)
Sedla
DN 900-1200: 1.4542 + HCr plating
Vřeteno
DN 900-1200: Stainless steel, X3CrNiMoN27-5-2 (1.4460)
Těsnění vřetena
DN 900-1200: Graphite
Ložiska
DN 900-1200: PTFE + AISI 316 net

Připojení

welding / welding, EN (DIN)

Ovládání

DN 900-1200
manual gear

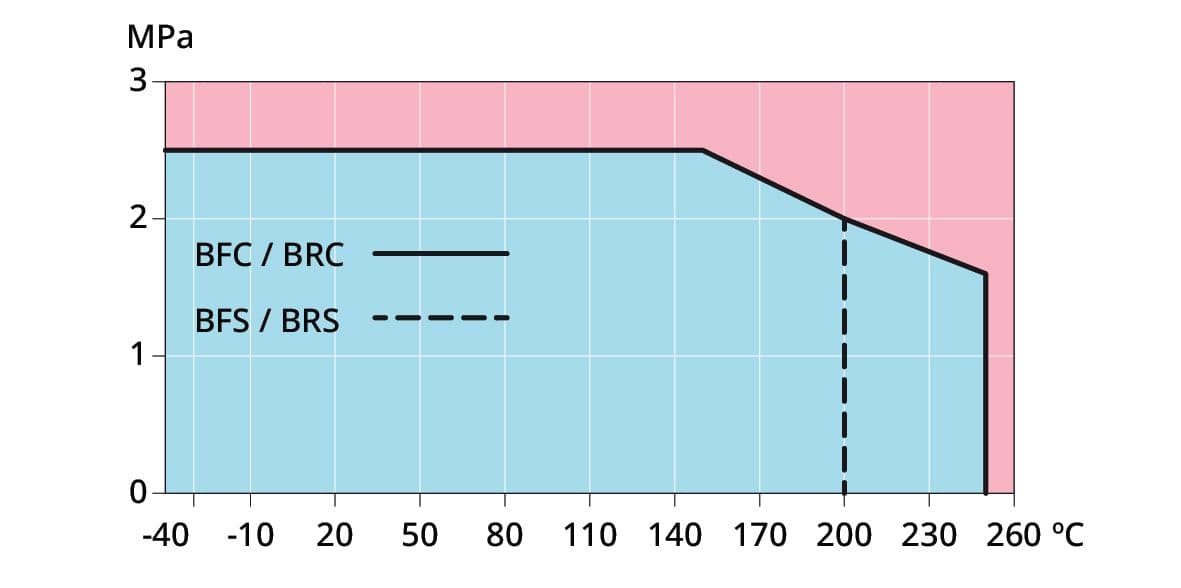

Provozní podmínky

Trim
Δp = 25 bar
Teplota
-40 °C - +250 °C
Třída těsnosti
A or B (EN 12266-1) depending on requirement

DN 1200: -20 °C – +200 °C. Below 0 °C contact manufacturer. Lowest allowed ambient temperature -40 °C.

DN 900-1200

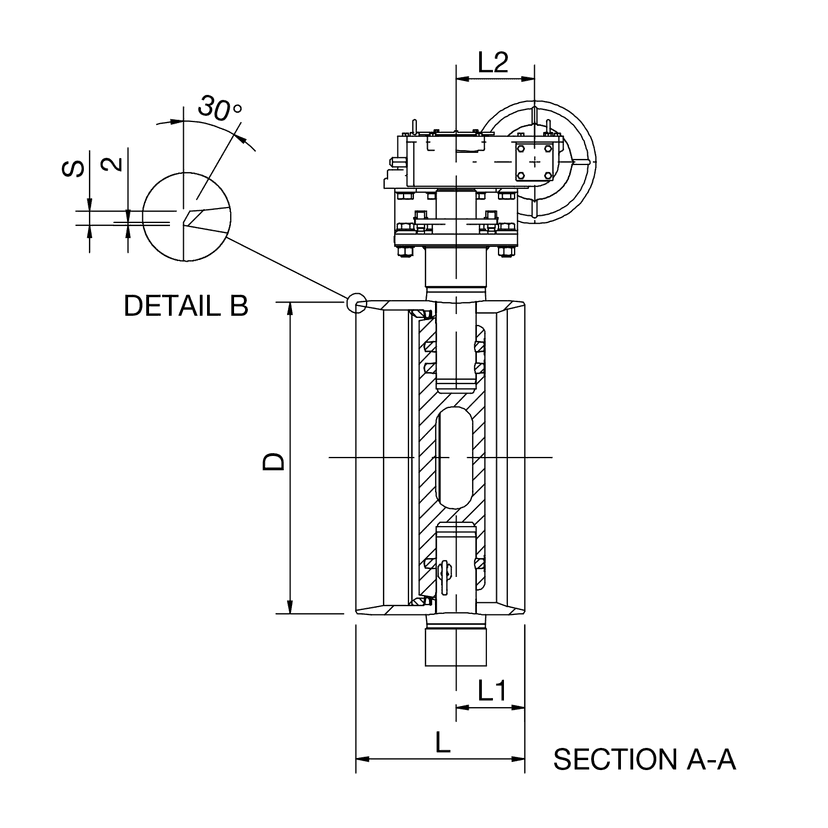

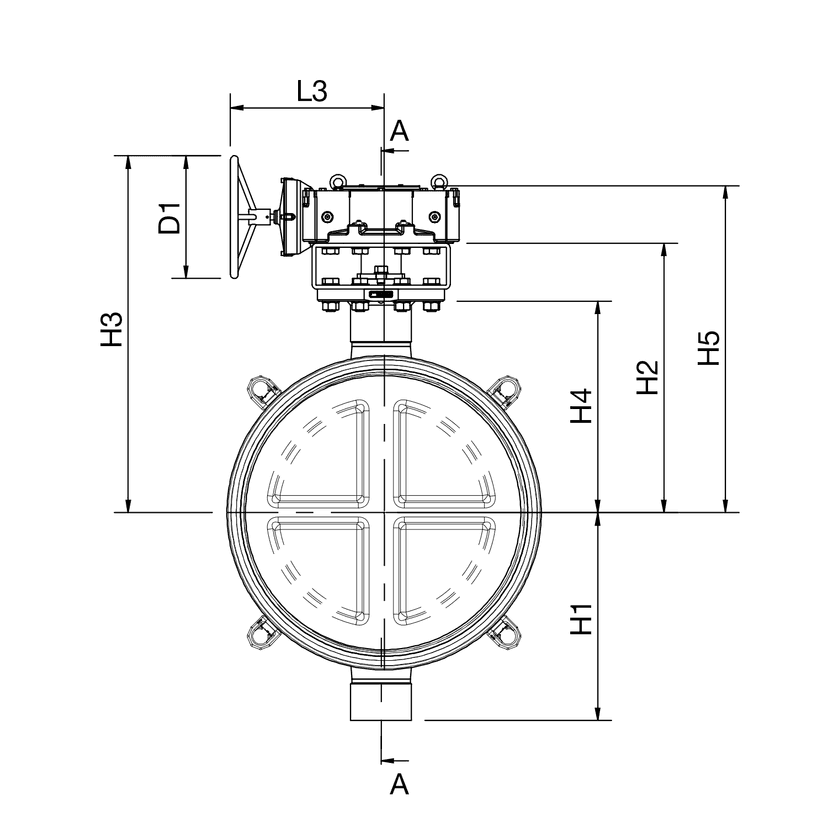

Rozměry

DN 900-1200
DN 900-1200
DN 900-1200
DNPNProduktové čísloDD1H1H2H3H4H5LL1L2L3Kg
90025BRC900W2914.0400631.081310986231003510221.02565051122
100025BRC1000W21016.0400678.087911646891069550224.02565061344
120025BRC1200W21219.0500730.0104314238561304580285.02506322178

Převodník čísel produktů

Produktové čísloEANLVIRSKNRF
BRC900W26415840426493404264945006185536042
BRC1000W26415840426509404265045006195536043
BRC1200W26415840426523404265245006205536044

Technická dokumentace produktu

  1. Certificates

    1. Certificate For Ball And Butterfly Valves

      Certificate For Ball And Butterfly Valves

      PDF
    2. Declaration of Conformity

      Declaration of Conformity

      PDF

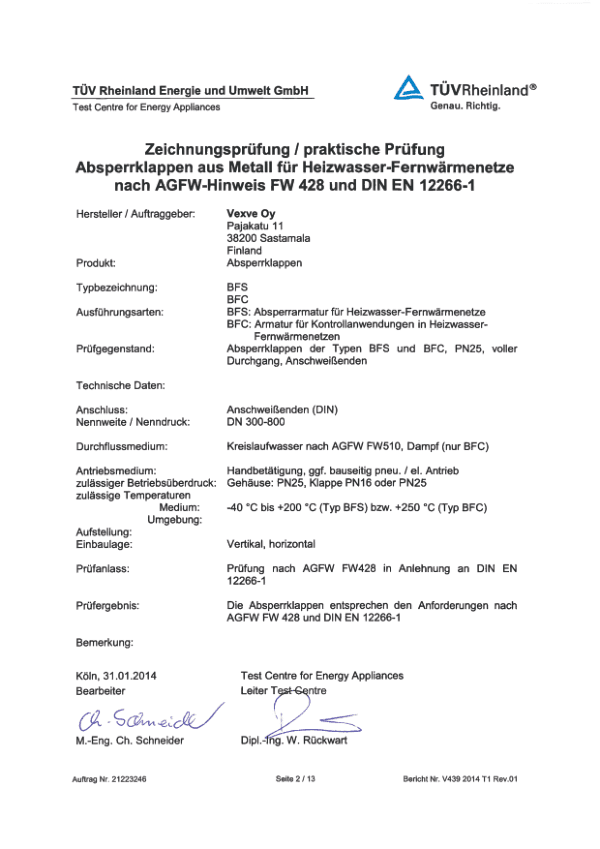

    3. T V AGFW FW428 BFS BFC

      T V AGFW FW428 BFS BFC

      PDF

  2. Operation manuals

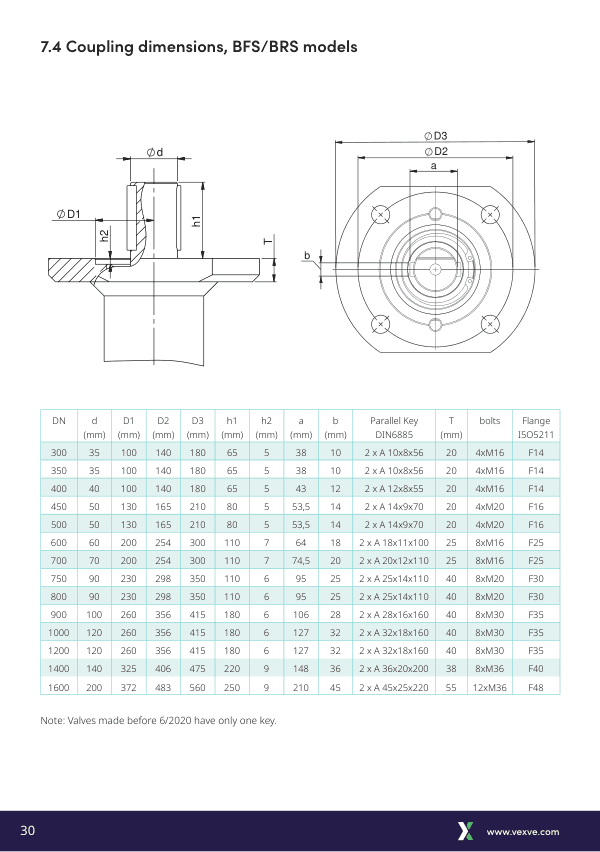

    1. Butterfly valves, coupling dimensions

      Butterfly valves, coupling dimensions

      PDF

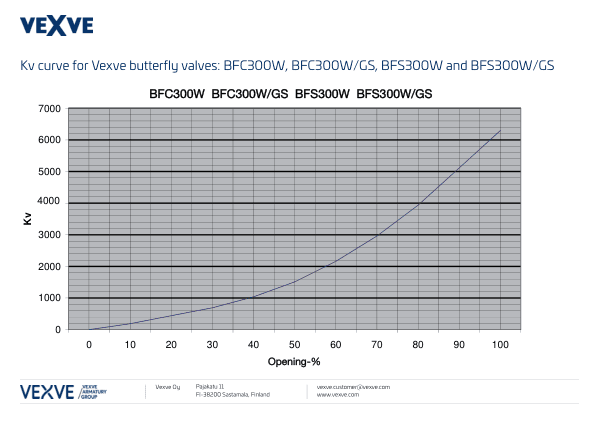

    2. Vexve Butterfly Valve Kv Curves For DN300 800 EN

      Vexve Butterfly Valve Kv Curves For DN300 800 EN

      PDF

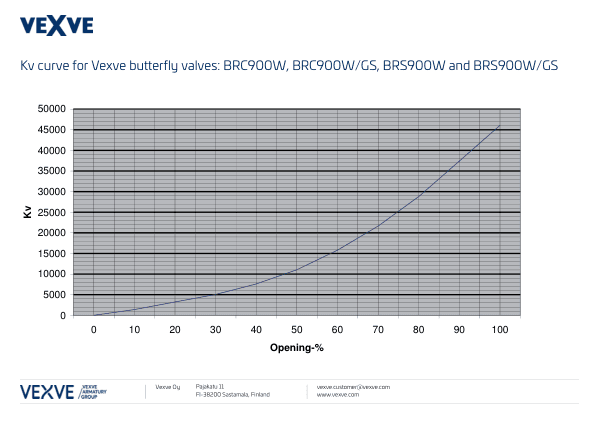

    3. Vexve Butterfly Valve Kv Curves For DN900 1200 EN

      Vexve Butterfly Valve Kv Curves For DN900 1200 EN

      PDF
    4. Vexve butterfly valves, installation, operation and maintenance manual

      Vexve butterfly valves, installation, operation and maintenance manual

      PDF

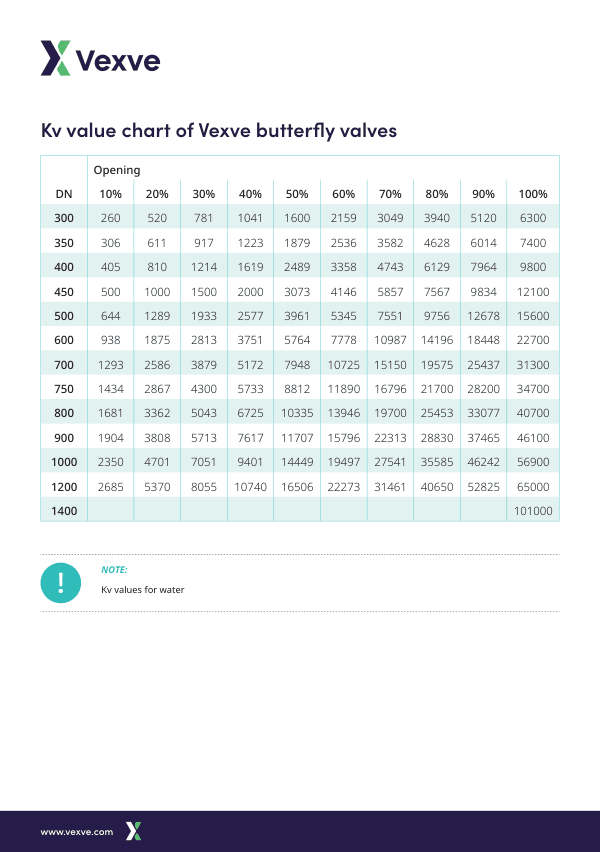

    5. Vexve Butterfly Valves Kv Value Chart EN

      Vexve Butterfly Valves Kv Value Chart EN

      PDF

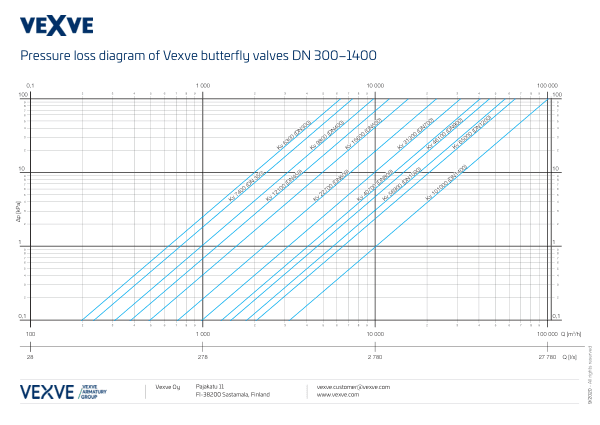

    6. Vexve Butterfly Valves Pressure Loss Diagram DN300 1400

      Vexve Butterfly Valves Pressure Loss Diagram DN300 1400

      PDF

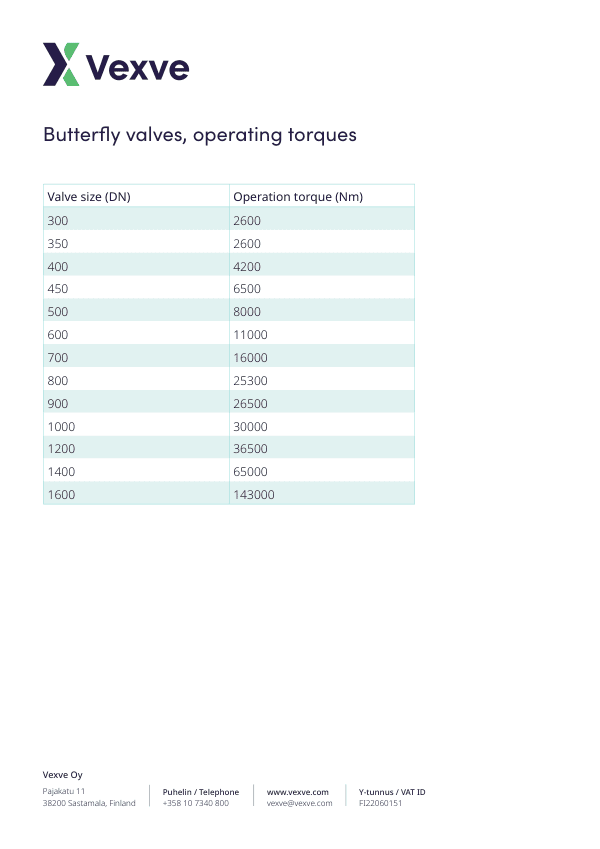

    7. Vexve Butterfly Valves Operating Torques EN
