Steel ball valve, flange / flange, reduced bore, DN 15-500, PN 16-40

Steel ball valve

Series 103, flange / flange, reduced bore, DN 15-500, PN 16-40

DN 15-50

Body	DN 15-500: Steel, P235GH (1.0345)
Ball	DN 15-500: Stainless steel, X5CrNi18-10 (1.4301)
Ball seal	DN 15-500: PTFE+C
Stem	DN 15-100: Stainless steel, X8CrNiS18-9 (1.4305) DN 125-150: Stainless steel, X17CrNi16-2 (1.4057) DN 200-500: Stainless steel, X8CrNiS18-9 (1.4305)
Stem seal	DN 15-500: FPM

flange / flange

EN 1092-1

Available PN 10, 16, 25, 40

DN 15-50	composite handle
DN 65-250	zinc-plated steel handle
DN 300-500	available with manual gear or with an electric or hydraulic actuator

We recommend manual gear operation for sizes DN 200 and larger.

Temperature	-20 °C - +200 °C
Leakage rate	A (EN 12266-1)

Below -20 °C contact manufacturer. Lowest allowed ambient temperature -40 °C.

DN 15-500

water area

Steam area (not allowed)

short-term working area

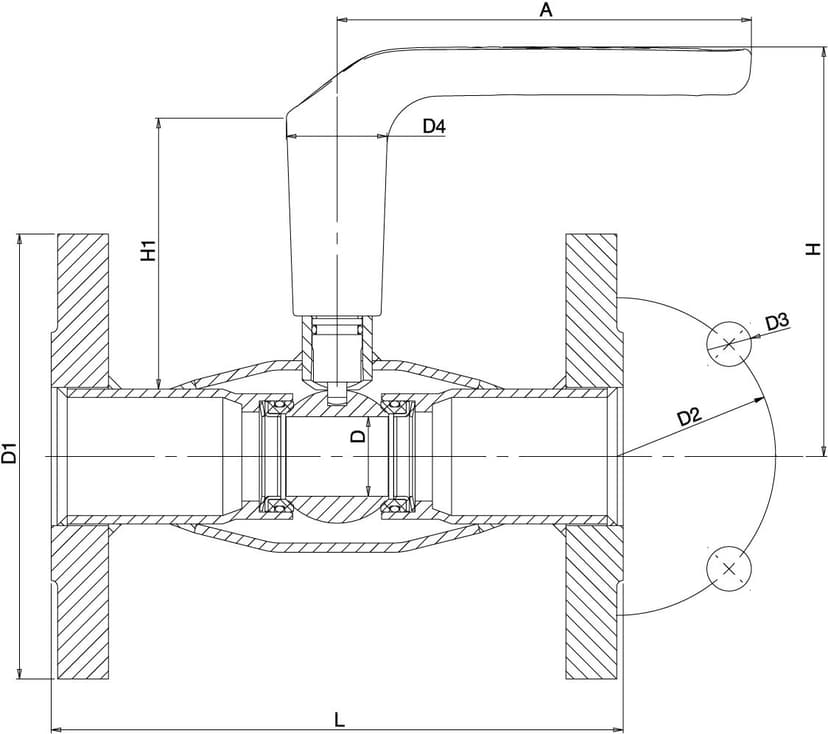

DN 15-50

DN 65-150

DN 200-250

DN 300-500

DN 300-500

DN	PN	Product no.	A	D	D1	D2	D3	D4	H	H1	L	Kg
15	40	103015X	130.0	10.0	95	65	14	32	119	86.0	130	1.7
20	40	103020X	130.0	15.0	105	75	14	32	123	87.0	150	2.4
25	40	103025X	130.0	20.0	115	85	14	32	125	86.0	160	2.9
32	40	103032X	130.0	25.0	140	100	18	32	129	85.0	180	4.5
40	40	103040X	130.0	32.0	150	110	18	32	133	87.0	200	5.2
50	40	103050X	130.0	40.0	165	125	18	32	140	88.0	230	6.7
65	16	103065	277.5	50.0	185	145	18		159	62.0	270	10.5
80	16	103080	277.5	65.0	200	160	18		171	68.0	280	12.5
100	16	103100	278.5	80.0	220	180	18		218	101.0	300	17.0
125	16	103125	400.0	100.0	250	210	18		252	101.0	325	25.0
150	16	103150	600.0	125.0	285	240	22		272	107.0	350	33.0
200	16	103200	870.0	150.0	340	295	22		280	92.0	400	58.0
250	16	103250	1200.0	200.0	405	355	26		350	108.0	500	102.0
300	16	103300		250.0	460	410	26	50		133.0	500	148.0
350	16	103350		290.0	520	470	26	50		192.0	706	226.0
400	16	103400		340.0	580	525	30	70		242.0	810	322.0
450	16	103450		390.0	640	585	30	90		282.0	978	608.0
500	16	103500		390.0	715	650	33	90		259.0	978	528.0

Product no.	Old Naval No	EAN	LVI	RSK	NRF
103015X		6415837556837	3755683	5495169	5599338
103020X		6415837556844	3755684	5495170	5599339
103025X		6415837556851	3755685	5495171	5599341
103032X		6415837556868	3755686	5495172	5599342
103040X		6415837556875	3755687	5495173	5599343
103050X		6415837556882	3755688	5495174	5599344
103065	285510	6415837550743	3755074	4500317	5599062
103080	285511	6415837550767	3755076	4500318	5599063
103100	285512	6415837550781	3755078	4500319	5599064
103125	285513	6415837550804	3755080	4500320	5599065
103150	285514	6415837550828	3755082	4500321	5599066
103200	285516	6415837550842	3755084	4500322	5599067
103250	285517	6415837550866	3755086	4500323	5599068
103300	28553805	6415837550880	3755088	4500306
103350	28557505	6415837550996	3755099	4500307
103400	28553905	6415837551009	3755100	4500308
103450
103500	28554005	6415837551016	3755101	4500309
