Steel ball valve, flange / flange, reduced bore, DN 100-500, PN 16

Steel ball valve

Series 104xx1, flange / flange, reduced bore, DN 100-500, PN 16

DN 100-500

Body	DN 100-500: Steel, P235GH (1.0345)
Ball	DN 100-500: Stainless steel, X5CrNi18-10 (1.4301)
Ball seal	DN 100-500: PTFE+C
Stem	DN 100: Stainless steel, X8CrNiS18-9 (1.4305) DN 125-150: Stainless steel, X17CrNi16-2 (1.4057) DN 200-500: Stainless steel, X8CrNiS18-9 (1.4305)
Stem seal	DN 100-500: FPM

flange / flange

EN 1092-1

Available PN 10, 16, 25, 40

DN 100-500

manual gear

Temperature	-20 °C - +200 °C
Leakage rate	A (EN 12266-1)

Below -20 °C contact manufacturer. Lowest allowed ambient temperature -40 °C.

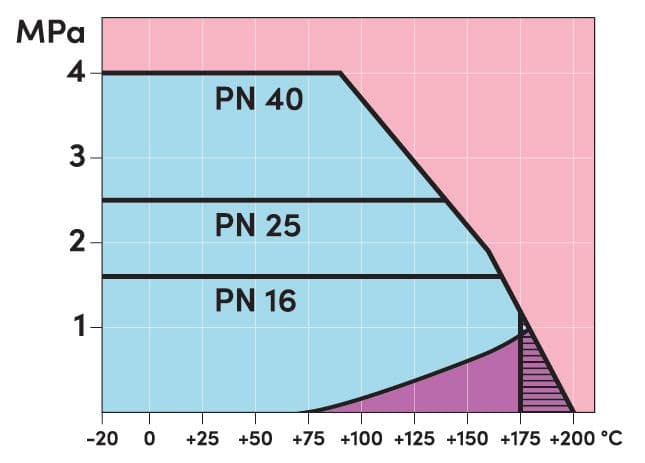

DN 100-500

water area

Steam area (not allowed)

short-term working area

DN 100-500

DN 100-500

DN	PN	Product no.	A	B	C	D	D1	D2	D3	D4	E	H1	L	Kg
100	16	104101	186.0	206	53	80.0	220	180	18	125	248	114.0	300	23
125	16	104126	224.0	216	53	100.0	250	210	18	200	258	112.0	325	30
150	16	104151	224.0	236	53	125.0	285	240	22	200	279	118.0	350	37
200	16	104201	268.0	244	69	150.0	340	295	22	250	293	92.0	400	68
250	16	104251	301.0	294	97	200.0	405	355	26	300	345	108.0	500	122
300	16	104301	363.0	343	118	250.0	460	410	26	500	412	115.0	500	190
350	16	104351	363.0	418	118	290.0	520	470	26	500	487	192.0	706	268
400	16	104401	444.0	500	138	340.0	580	525	30	500	573	242.0	810	365
450	16	104451	471.0	576	180	390.0	640	585	30	500	648	282.0	978	668
500	16	104501	475.0	577	180	390.0	715	650	33	500	648	259.0	978	595

Product no.	Old Naval No	EAN	LVI	RSK	NRF
104101	285532	6415837550903	3755090	4506149
104126	285533	6415837550910	3755091	4506150	5599069
104151	285534	6415837550927	3755092	4500337	5599071
104201	285536	6415837550941	3755094	4500338	5599072
104251	285537	6415837550965	3755096	4500339	5599073
104301	285538	6415837550989	3755098	4500340	5599074
104351	285575	6415837551030	3755103	4500358	5599075
104401	285539	6415837551047	3755104	4500359	5599076
104451
104501	285540	6415837551054	3755105	4500360	5599077
