DN 125-150
Materials
| Body | DN 125-150: Steel, P235GH (1.0345) |
| Ball | DN 125-150: Stainless steel, X5CrNi18-10 (1.4301) |
| Ball seal | DN 125-150: PTFE+GF |
| Stem | DN 125-150: Stainless steel, X17CrNi16-2 (1.4057) |
| Stem seal | DN 125-150: FFKM/EPDM |
Mounting
| flange / flange | Available PN 10, 16, 25, 40 |
Operation
| DN 125-150 | manual gear |

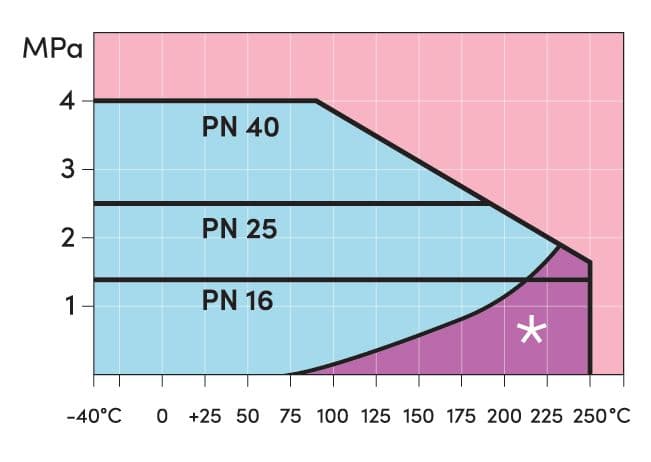

Operating conditions
| Temperature | -20 °C - +250 °C |
Below -20 °C contact manufacturer. Lowest allowed ambient temperature -40 °C. *) Not for superheated steam.
DN 125-150

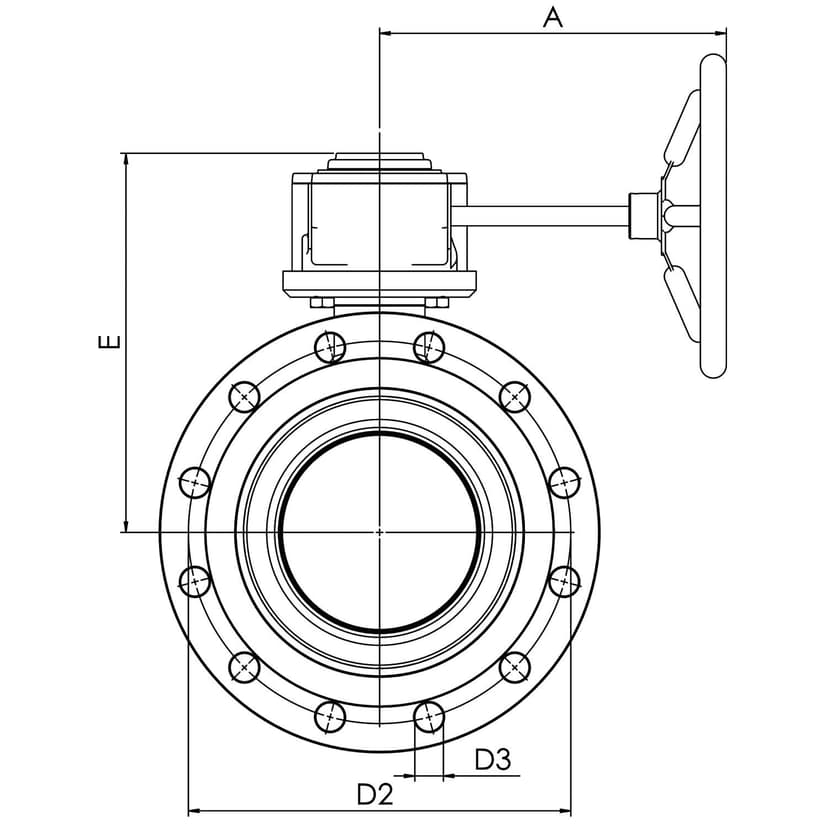

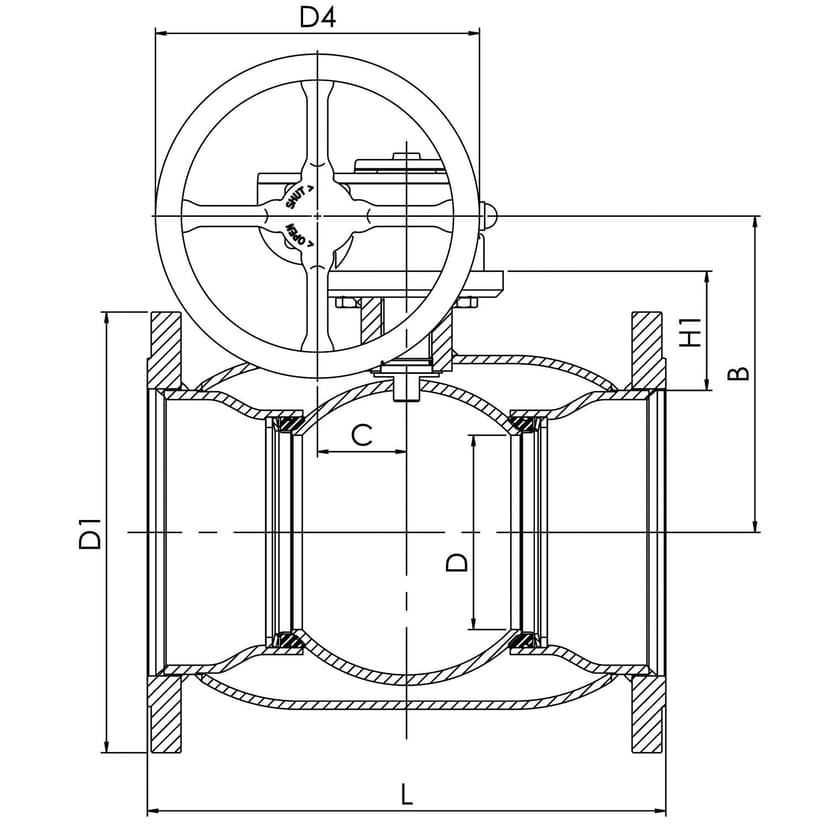

Dimensions
DN 125-150
DN 125-150
DN 125-150
| DN | PN | Product no. | A | B | C | D | D1 | D2 | D3 | D4 | E | H1 | L | Kg |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
| 125 | 25 | 174126/25 | 224.0 | 216 | 53 | 100.0 | 270 | 220 | 26 | 200 | 258 | 112.0 | 325 | 35 |
| 150 | 25 | 174151/25 | 224.0 | 236 | 53 | 125.0 | 300 | 250 | 26 | 200 | 279 | 118.0 | 350 | 44 |
Product number conversions
| Product no. | Old Naval No | EAN | LVI |
|---|---|---|---|
| 174126/25 | 274593 | 6415837556547 | 3755654 |
| 174151/25 | 274594 | 6415837556554 | 3755655 |
