Stainless steel ball valve
Series 230, welding / welding, EN (DIN), reduced bore, DN 10-300, PN 25-40
DN 10-50
Materials
| Body | DN 10-50: Stainless steel, AISI316L (1.4404) DN 65-300: Stainless steel, X2CrNiMo17-12-2 (1.4404) |
| Ball | DN 10-50: Stainless steel, AISI316L (1.4404) DN 65-300: Stainless steel, X2CrNiMo17-12-2 (1.4404) |
| Ball seal | DN 10-300: PTFE+C |
| Stem | DN 10-50: Stainless steel, AISI316L (1.4404) DN 65-300: Stainless steel, X2CrNiMo17-12-2 (1.4404) |
| Stem seal | DN 10-300: FPM/NBR |
Mounting
| welding / welding, EN (DIN) |
Operation
| DN 10-50 | composite handle |
| DN 65-250 | zinc-plated steel handle |
| DN 300 | available with manual gear or with an electric or hydraulic actuator |
Operating conditions
| Temperature | -20 °C - +200 °C |
| Leakage rate | A (EN 12266-1) |
Below -20 °C contact manufacturer. Lowest allowed ambient temperature -40 °C.
DN 10-300

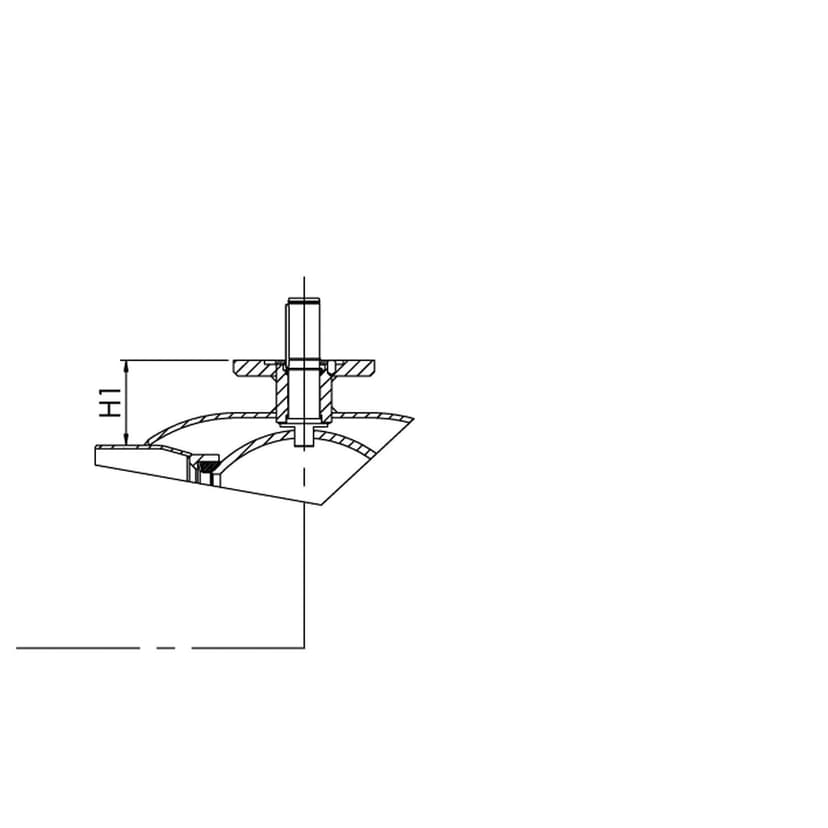

Dimensions
DN 10-300
DN 10-50
DN 65-150
DN 200-300
| DN | PN | Product no. | A | D | D1 | D2 | D3 | H | H1 | L | S | Kg |
|---|---|---|---|---|---|---|---|---|---|---|---|---|
| 10 | 40 | 230010X | 130.0 | 10.0 | 17.2 | 33.7 | 32 | 119 | 86.0 | 230 | 2.0 | 0.5 |
| 15 | 40 | 230015X | 130.0 | 10.0 | 21.3 | 33.7 | 32 | 119 | 86.0 | 230 | 2.0 | 0.5 |
| 20 | 40 | 230020X | 130.0 | 15.0 | 26.9 | 42.4 | 32 | 123 | 87.0 | 230 | 2.0 | 0.6 |
| 25 | 40 | 230025X | 130.0 | 20.0 | 33.7 | 48.3 | 32 | 125 | 86.0 | 230 | 2.0 | 0.8 |
| 32 | 40 | 230032X | 130.0 | 25.0 | 42.4 | 60.3 | 32 | 129 | 85.0 | 260 | 2.0 | 1.2 |
| 40 | 40 | 230040X | 130.0 | 32.0 | 48.3 | 70.0 | 32 | 133 | 87.0 | 260 | 2.6 | 1.7 |
| 50 | 40 | 230050X | 130.0 | 40.0 | 60.3 | 76.1 | 32 | 140 | 88.0 | 300 | 2.6 | 2.4 |
| 65 | 25 | 230065 | 278.0 | 50.0 | 76.1 | 114.3 | 150 | 51.0 | 300 | 3.0 | 3.8 | |
| 80 | 25 | 230080 | 278.0 | 65.0 | 88.9 | 114.3 | 160 | 58.0 | 300 | 3.0 | 4.7 | |
| 100 | 25 | 230100 | 278.0 | 80.0 | 114.3 | 139.7 | 175 | 54.0 | 325 | 3.0 | 6.7 | |
| 125 | 25 | 230125 | 400.0 | 100.0 | 139.7 | 177.8 | 220 | 68.0 | 325 | 4.0 | 13.0 | |
| 150 | 25 | 230150 | 600.0 | 125.0 | 168.3 | 219.1 | 240 | 74.0 | 350 | 4.0 | 18.0 | |
| 200 | 25 | 230200 | 870.0 | 150.0 | 219.1 | 273.0 | 280 | 92.0 | 400 | 4.0 | 32.0 | |
| 250 | 25 | 230250 | 1200.0 | 200.0 | 273.0 | 355.6 | 340 | 108.0 | 530 | 4.0 | 63.0 | |
| 300 | 25 | 230300 | 250.0 | 323.9 | 457.0 | 132.0 | 550 | 6.1 | 104.0 |
Product number conversions
| Product no. | Old Naval No | EAN | LVI | RSK | NRF |
|---|---|---|---|---|---|
| 230010X | 6415837651815 | 3765181 | 5495203 | 5599376 | |
| 230015X | 6415837651822 | 3765182 | 5495204 | 5599377 | |
| 230020X | 6415837651839 | 3765183 | 5495205 | 5599378 | |
| 230025X | 6415837651846 | 3765184 | 5495206 | 5599379 | |
| 230032X | 6415837651853 | 3765185 | 5495207 | 5599381 | |
| 230040X | 6415837651860 | 3765186 | 5495208 | 5599382 | |
| 230050X | 6415837651877 | 3765187 | 5495209 | 5599383 | |
| 230065 | 286410 | 6415837650566 | 3765056 | 4500352 | 5599164 |
| 230080 | 286411 | 6415837650580 | 3765058 | 4500353 | 5599165 |
| 230100 | 286412 | 6415837650603 | 3765060 | 4500354 | 5599166 |
| 230125 | 286413 | 6415837650627 | 3765062 | 4500355 | 5599167 |
| 230150 | 286414 | 6415837650641 | 3765064 | 4500356 | 5599168 |
| 230200 | 286416 | 6415837650665 | 3765066 | 4500357 | 5599169 |
| 230250 | 286417 | 6415837650672 | 3765067 | 4500415 | 5599171 |
| 230300 |
