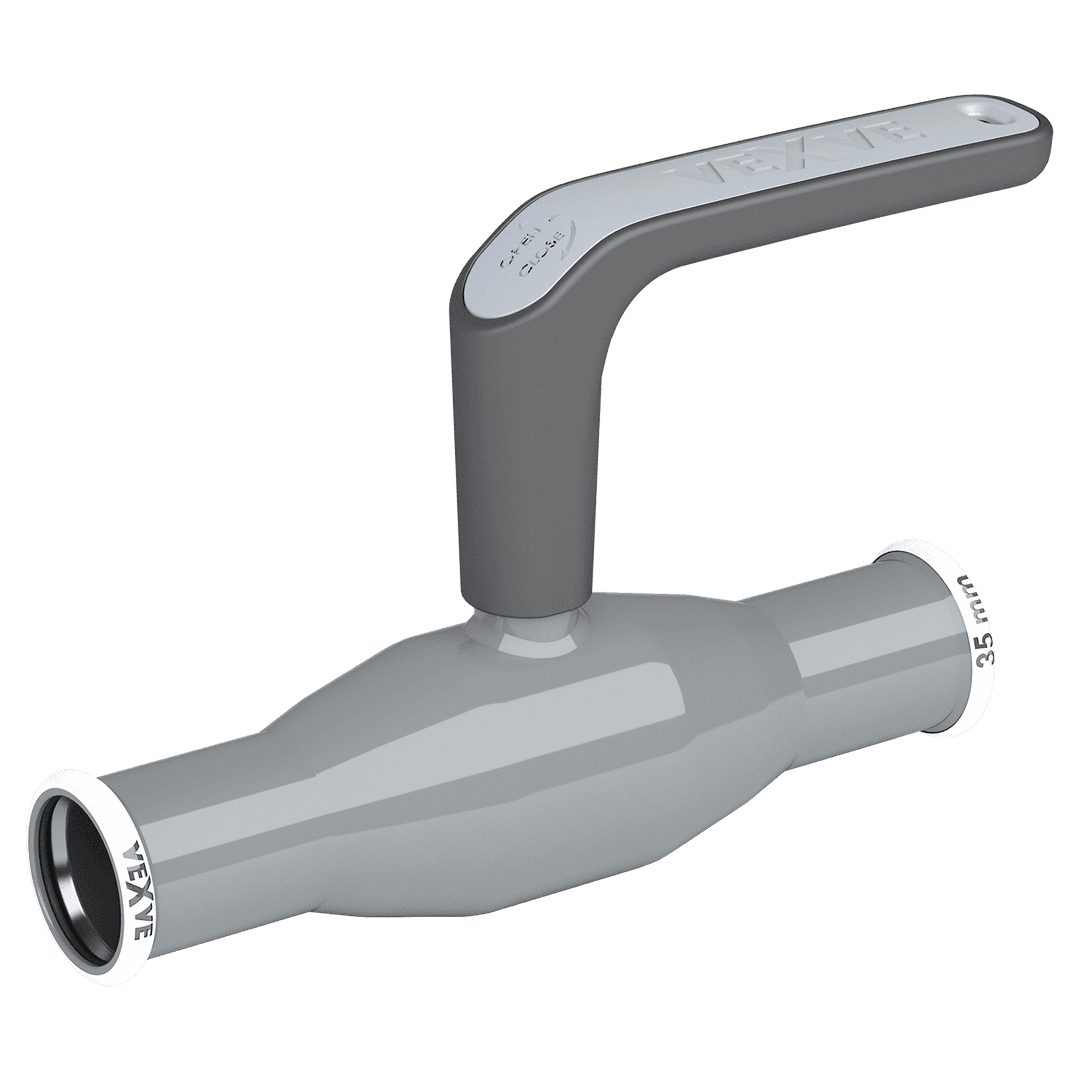

Stainless steel ball valve
Series 238, press fit / press fit, EN (DIN), reduced bore, DN 15-50, PN 16
DN 15-50
Materials
| Body | DN 15-50: Stainless steel, X2CrNiMo17-12-2 (1.4404) |
| Ball | DN 15-50: Stainless steel, X2CrNiMo17-12-2 (1.4404) |
| Ball seal | DN 15-50: PTFE+C |
| Stem | DN 15-50: Stainless steel, X2CrNiMo17-12-2 (1.4404) |
| Stem seal | DN 15-50: FPM/NBR |
Press fit connection’s O-ring (LBP) DN 15-50 : CIIR
Mounting
| press fit / press fit, EN (DIN) |
Operation
| DN 15-50 | composite handle |
Operating conditions
| Temperature | -20 °C - +120 °C |
| Leakage rate | A (EN 12266-1) |
Below -20 °C contact manufacturer. Lowest allowed ambient temperature -40 °C.
DN 15-50

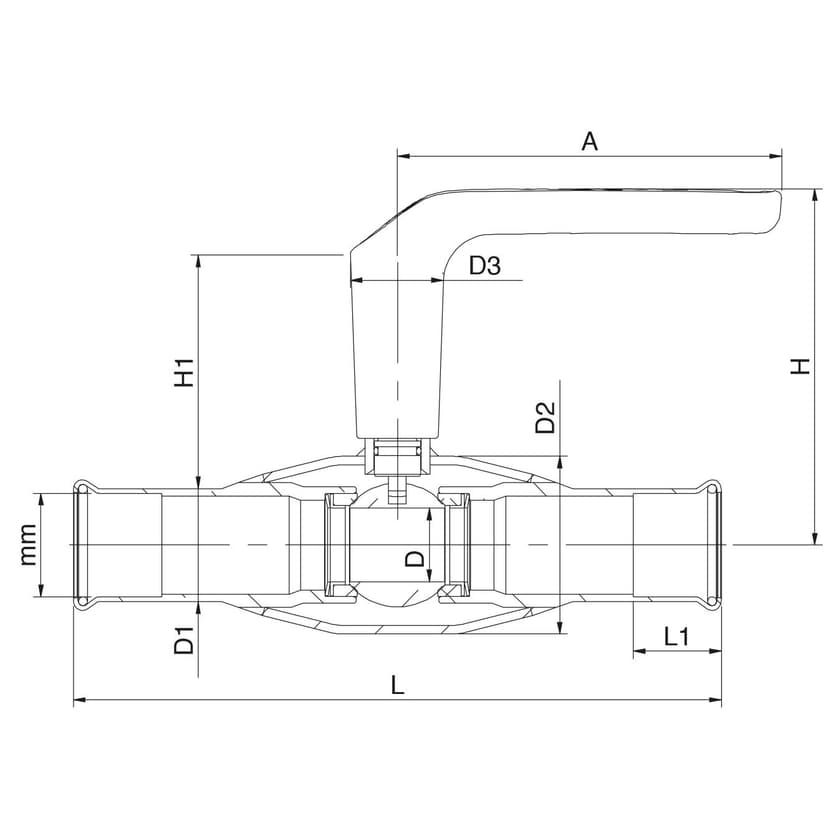

Dimensions
DN 15-50
DN 15-50
| DN | PN | Product no. | A | D | D1 | D2 | D3 | H | H1 | L | L1 | Kg |
|---|---|---|---|---|---|---|---|---|---|---|---|---|
| 15 | 16 | 238015X | 130.0 | 10.0 | 21.3 | 33.7 | 32 | 119 | 86.0 | 230 | 20.0 | 0.6 |
| 20 | 16 | 238020X | 130.0 | 15.0 | 25.3 | 42.4 | 32 | 123 | 88.0 | 230 | 21.0 | 0.7 |
| 25 | 16 | 238025X | 130.0 | 20.0 | 31.3 | 48.3 | 32 | 125 | 87.0 | 230 | 23.0 | 0.9 |
| 32 | 16 | 238032X | 130.0 | 25.0 | 38.4 | 60.3 | 32 | 129 | 87.0 | 230 | 26.0 | 1.2 |
| 40 | 16 | 238040X | 130.0 | 32.0 | 45.4 | 70.0 | 32 | 134 | 88.0 | 250 | 30.0 | 1.5 |
| 50 | 16 | 238050X | 130.0 | 50.0 | 57.5 | 76.1 | 32 | 141 | 89.0 | 250 | 35.0 | 2.1 |
