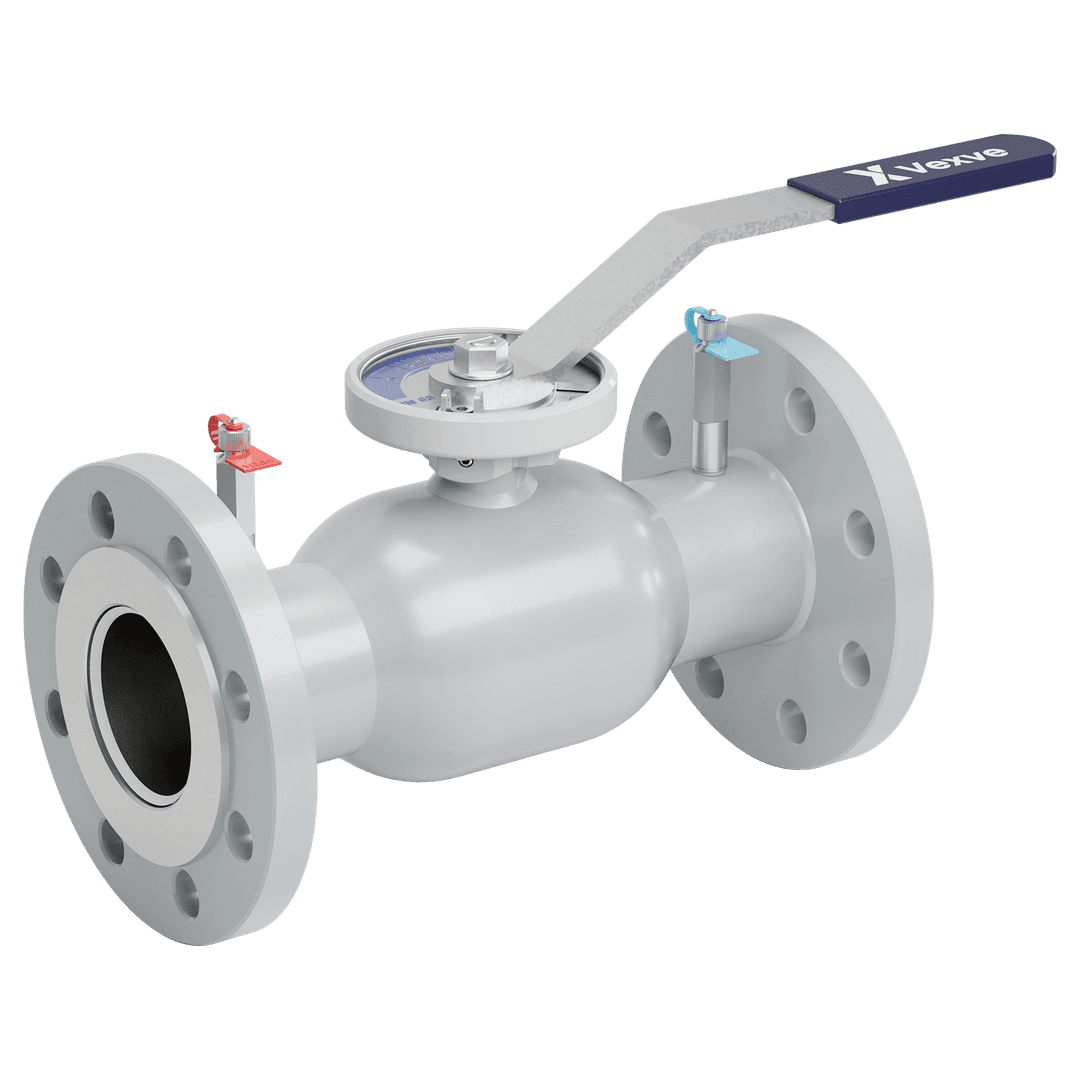

Balancing valve, stainless steel, flange / flange, reduced bore, DN 65-300, PN 25

Balancing valve, stainless steel

Series 243/25, flange / flange, reduced bore, DN 65-300, PN 25

DN 65-150

Body	DN 65-300: Stainless steel, X2CrNiMo17-12-2 (1.4404)
Ball	DN 65-300: Stainless steel, X2CrNiMo17-12-2 (1.4404)
Ball seal	DN 65-300: PTFE+GF
Stem	DN 65-300: Stainless steel, X2CrNiMo17-12-2 (1.4404)
Stem seal	DN 65-300: FPM/NBR
Measuring block	DN 65-300: Self-sealing, stainless steel, X2CrNiMo17-12-2 (1.4404) / EPDM

flange / flange

EN 1092-1

Available PN 10, 16, 25, 40

DN 65-150	zinc-plated steel handle
DN 200-300	manual gear

Temperature	-20 °C - +200 °C
Leakage rate	A (EN 12266-1)

Below -20 °C contact manufacturer. Lowest allowed ambient temperature -40 °C.

DN 65-300

water area

Steam area (not allowed)

short-term working area

DN 65-150

DN 200-300

DN 200-300

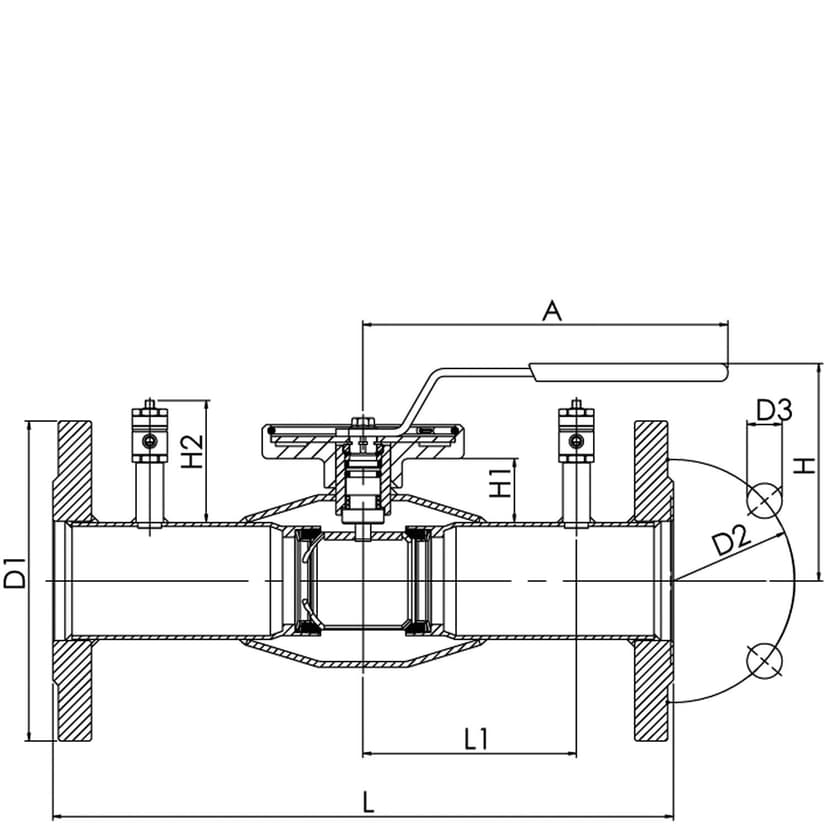

DN	PN	Product no.	A	B	C	D1	D2	D3	D4	E	H	H1	H2	L	L1	Kg
65	25	243065/25	280.0			185	145	18			148	58.0	82	310	110.0	10.8
80	25	243080/25	280.0			200	160	18			160	64.0	82	310	110.0	13.5
100	25	243100/25	280.0			235	190	22			173	52.0	82	350	122.5	19.5
125	25	243125/25	400.0			270	220	26			221	68.0	82	360	137.5	30.8
150	25	243150/25	600.0			300	250	26			240	74.0	82	390	150.0	36.0
200	25	243200/25	268.0	244	69	360	310	26	250	293		72.0	101	425	195.0	66.0
250	25	243250/25	301.0	294	97	425	370	30	300	345		88.0	107	550	256.0	113.0
300	25	243300/25	424.0	349	138	485	430	30	600	422		112.0	152	565	262.0	187.0

Vexve's balancing valves can be found e.g. from libraries of TA-SCOPE and SmartBalancing measuring devices.

Product no.	Old Naval No	EAN	LVI
243065/25	266570V	6415840116165	4011616
243080/25	266571V	6415840116172	4011617
243100/25	266572V	6415840116189	4011618
243125/25	266573V	6415840116196	4011619
243150/25	266574V	6415840116202	4011620
243200/25	266576V	6415840116219	4011621
243250/25	266577V	6415840116226	4011622
243300/25
