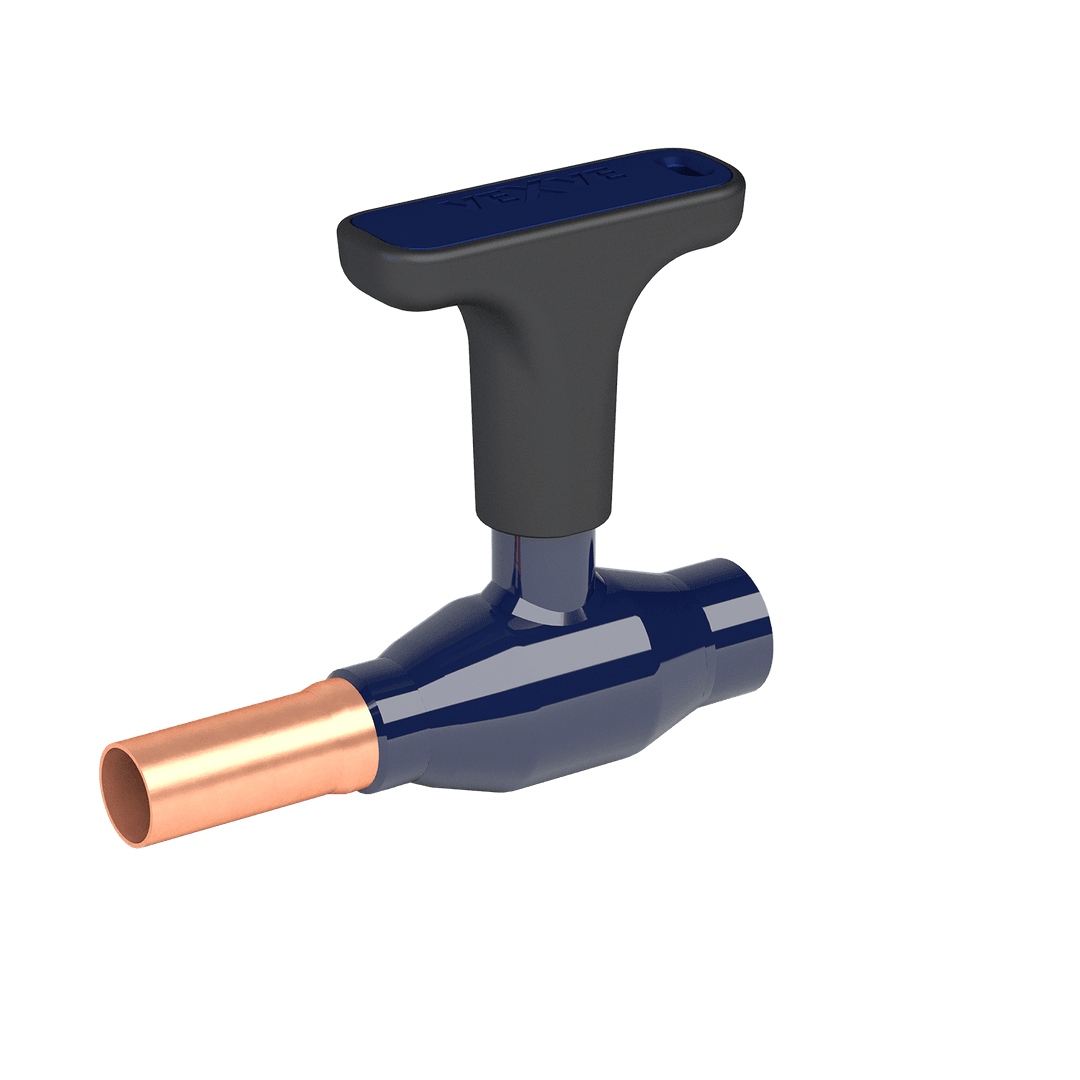

DN 20-20
Materials
| Body | DN 20: Steel, P235GH (1.0345) |
| Solder connection | DN 20: Copper, EN 1057: 2006 |
| Ball | DN 20: Stainless steel, X5CrNi18-10 (1.4301) |
| Ball seal | DN 20: PTFE+C |
| Stem | DN 20: Stainless steel, X8CrNiS18-9 (1.4305) |
| Stem seal | DN 20: FPM |
Mounting
| female threads / copper |
Operation
| DN 20 | composite T-handle |
Operating conditions
| Temperature | -20 °C - +120 °C |
| Leakage rate | A (EN 12266-1) |
Below -20 °C contact manufacturer. Lowest allowed ambient temperature -40 °C.
DN 15-50
Dimensions

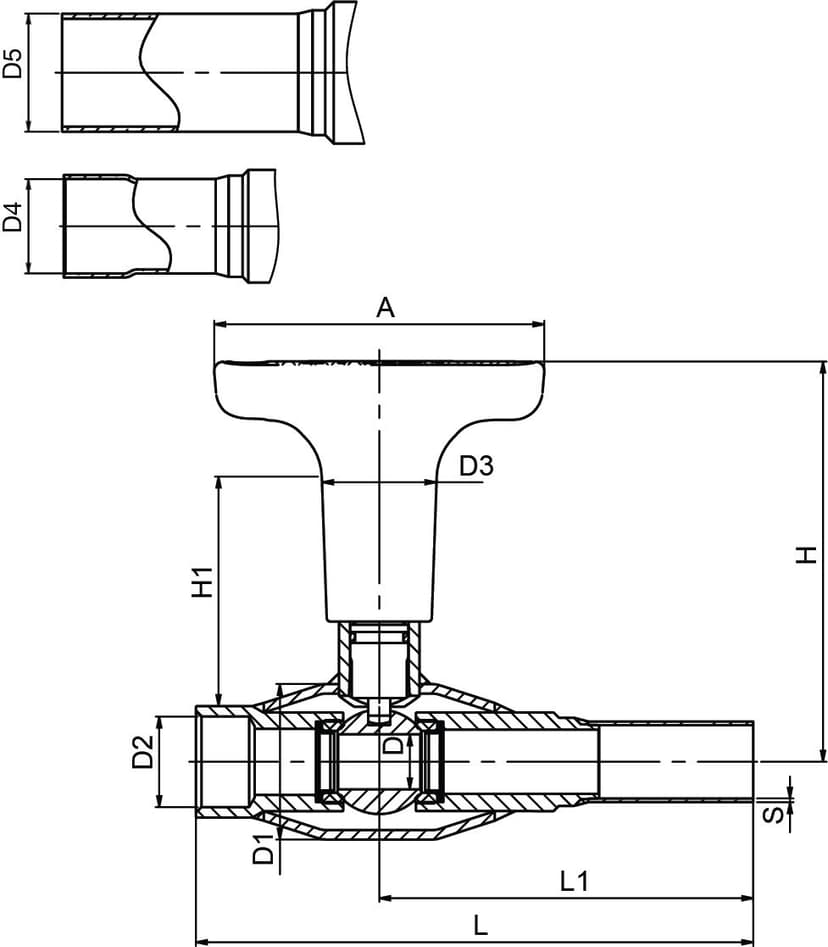

DN 20-20
DN 20
| DN | PN | Product no. | A | D | D1 | D2 | D3 | D4 | D5 | H | H1 | L | L1 | S | Kg |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
| 20 | 16 | 302020X | 90.0 | 15.0 | 42.4 | Rp 3/4 | 32 | 22 | 109 | 62.0 | 152 | 102.0 | 1 | 0.6 | |
| 20 | 16 | 302020X/18 | 90.0 | 15.0 | 42.4 | Rp 3/4 | 32 | 18 | 109 | 62.0 | 152 | 102.0 | 1 | 0.6 |
Product number conversions
| Product no. | LVI | RSK |
|---|---|---|
| 302020X | 3755737 | 5495435 |
| 302020X/18 | 3755738 | 5495436 |
