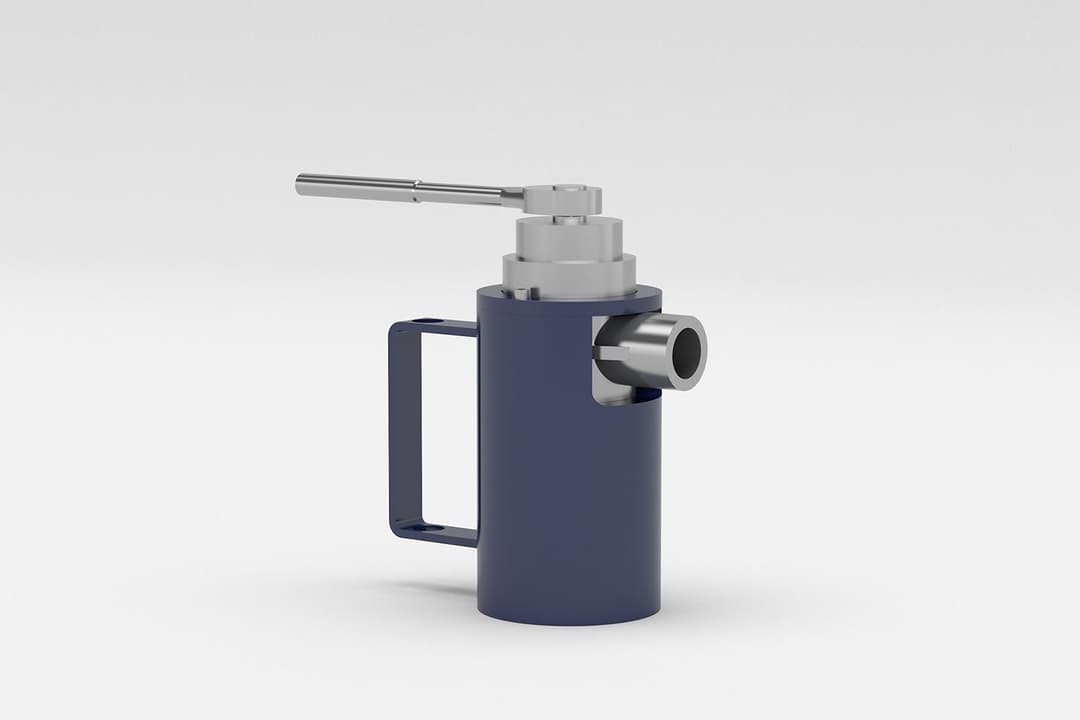

Planet Gear
The portable planetary gears are designed to be used with long stem valves. Planetary gear converts the input torque, meaning that the user is able to operate the valve with less torque.
Properties
| Material: | Steel |
| Max input Nm: | 450 Nm |
| Max output Nm: | 6500 Nm |
| Gear reduction ratio: | 18:01 |
| Product number: | 287192, sizes DN 100–150, HEX-27 |
| 287191, sizes DN 200–400, HEX-50 | |
| Note: | In sizes DN 100–150 the long stem ball valve must have a 90 mm 6k flange (299470) and retaining ring (299412) |
| Weight: | 287192: 10,3 kg |
| 287191:18,6 kg | |
