Function

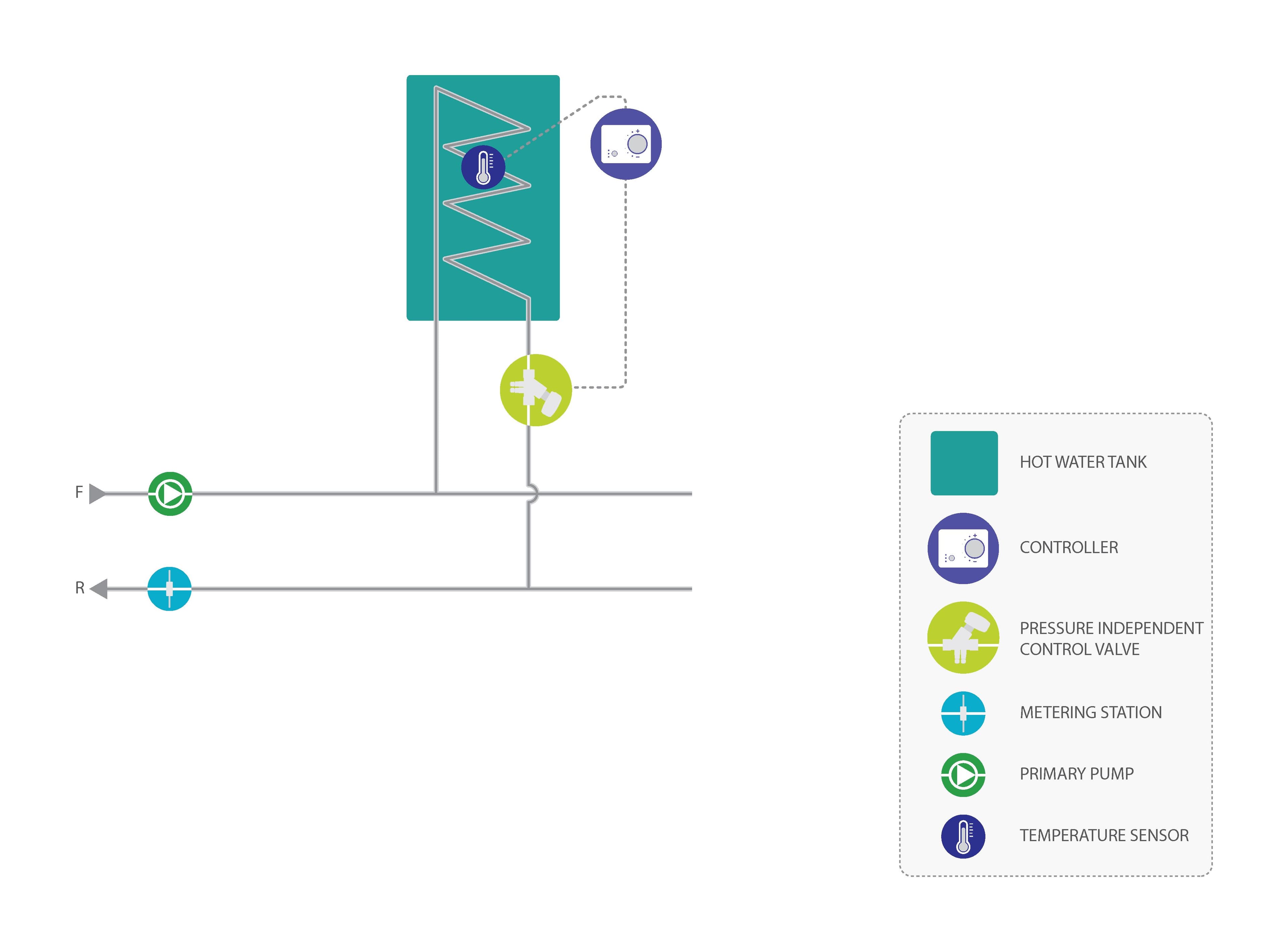

The hot water temperature in the tank is controlled by a controller with a temperature sensor placed in the tank.

The valve is controlled by a modulating actuator mounted directly on the PICV.

Benefits

• The PICV ensures balancing of the flow and eliminates the use of both static balancing valves and differential pressure control valves.
• Simple installation.
• Low total pressure loss in the system due to simple design.
• The flow can be set directly on the PICV without the need of a manometer or a commissioning unit.
• The flow limiting feature of the PICV ensures a minimum Delta T for the water heating up the tank.
• Legionella heating up cycles can be performed automatically.

Considerations

• A metering station can be installed if additional flow verification is required by the witnessing authority.
