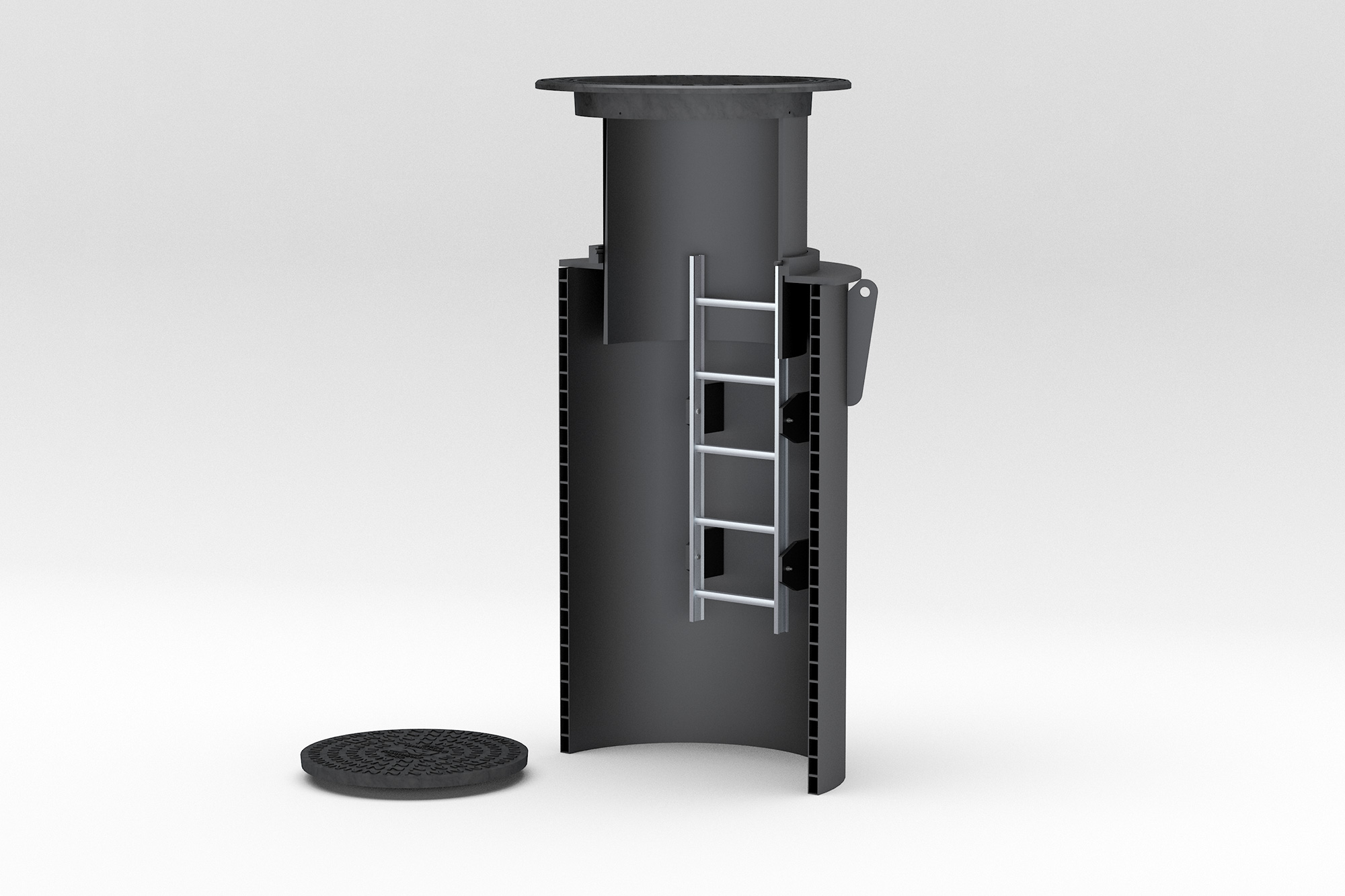

Plastic chamber
Properties
| Bodypipe / manhole: | Polyethylene |
| Lid cover: | Cast iron, 40 tons (EN124) |
| Manhole ring stiffness: | SN1 (ISO 9969) |
| Chamber ring stiffness: | SN2 (ISO 9969) |
| Weight: | 450 kg (default height) |
| Adjustable height: | Bodypipe can be cut to desired length on-site |
Plastic chamber is delivered with aluminium ladders | |
Options: | Available with different length chambers up to 10 meters. Ring stiffness classification (SN2/SN4/SN8) depending on the required length. |
Solution
Plastic chamber is designed to be the optimal companion with manual and hydraulic valve operating systems of direct-buried valves.
Available
The chamber is equipped with a telescopic mechanism for adjustable depth and it can support itself without concrete supports.
Characteristics
The chamber can be used as an easy alternative to concrete valve chambers – instead of laying of concrete the polyethylene chamber can be simply placed on top of exposed actuators and landfill can be done immediately after.
