Model: Basic
Product no.: 814001

Technical charasteristics

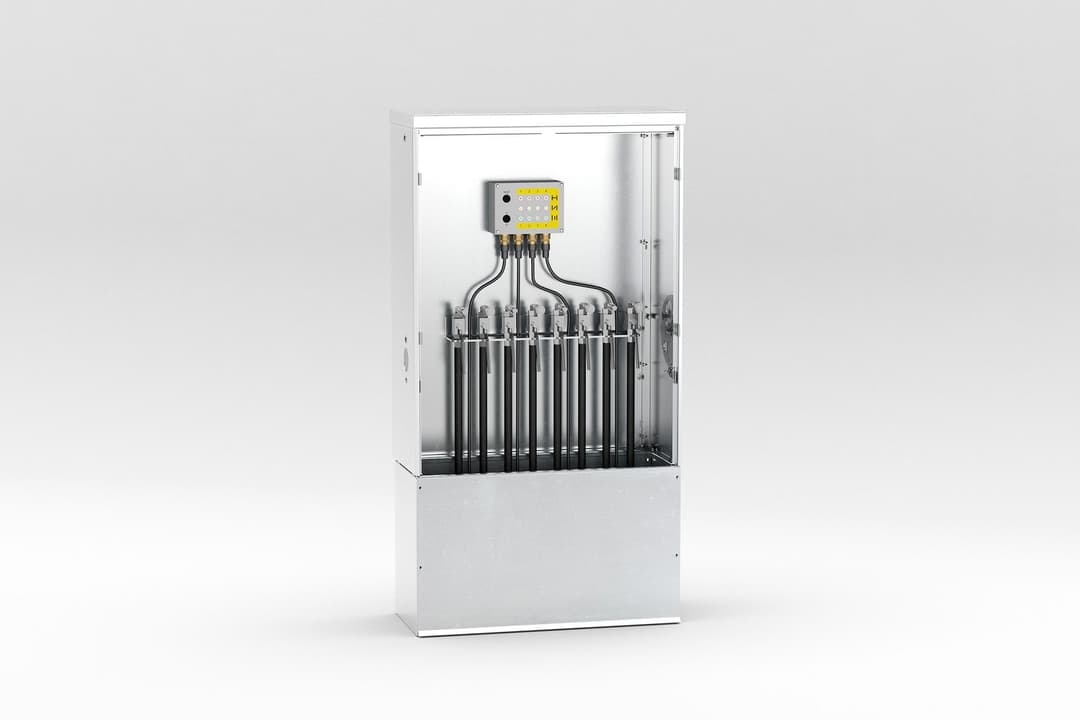

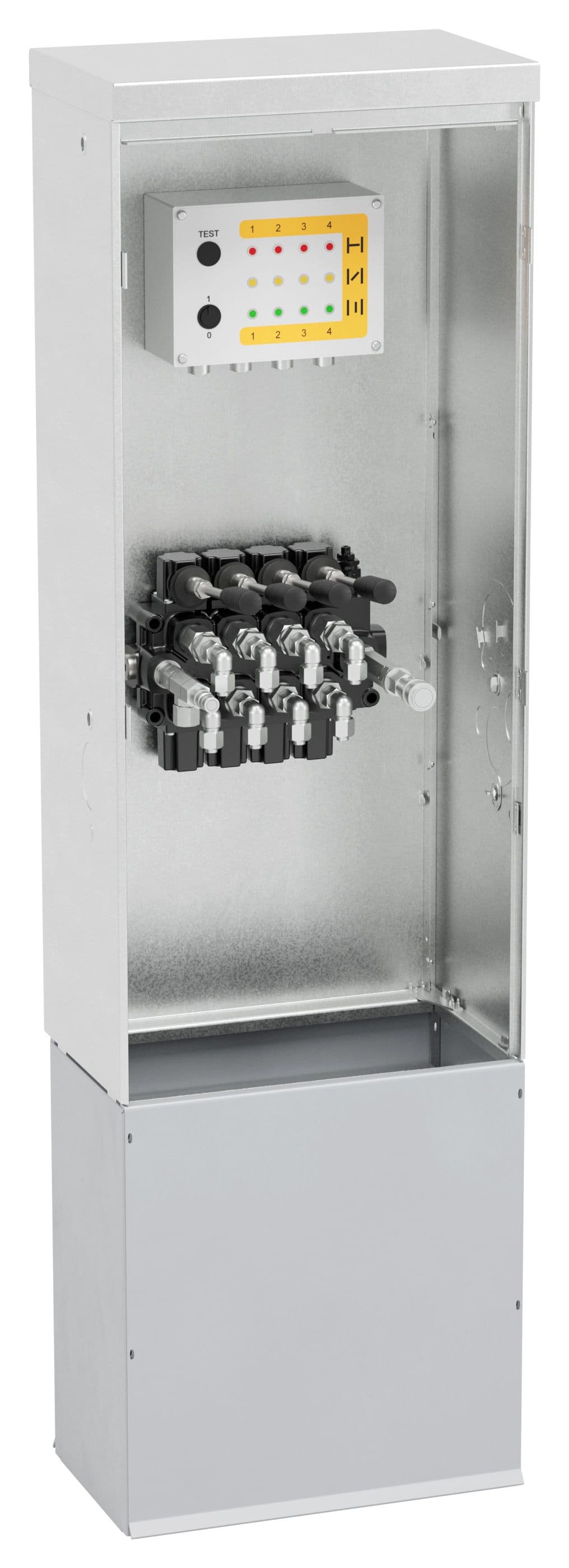

Control unit

Control unit for controlling four valves equipped with hydraulic actuators.

• Dimensions: 352 x 1200 x 220 mm (W x H x D)
• Protection class: IP34
• Fluid temperature: −20 – +80 °C
• Ambient temperature: −20 – +50 °C

Control valve block

• Max. pressure: 350 bar
• Positions of lever: 3 (valve open – neutral – valve shut)
• One valve is possible to maneuver at a time

Indicator lamp panel

• Indicates open, middle and shut positions of valves
• Low voltage powered with battery
• Connected to position transmitter on the actuator

Connection for portable pump unit

• Quick couplings with flat face casing
• Pump unit includes transportation box, hydraulic hoses and electric cable
